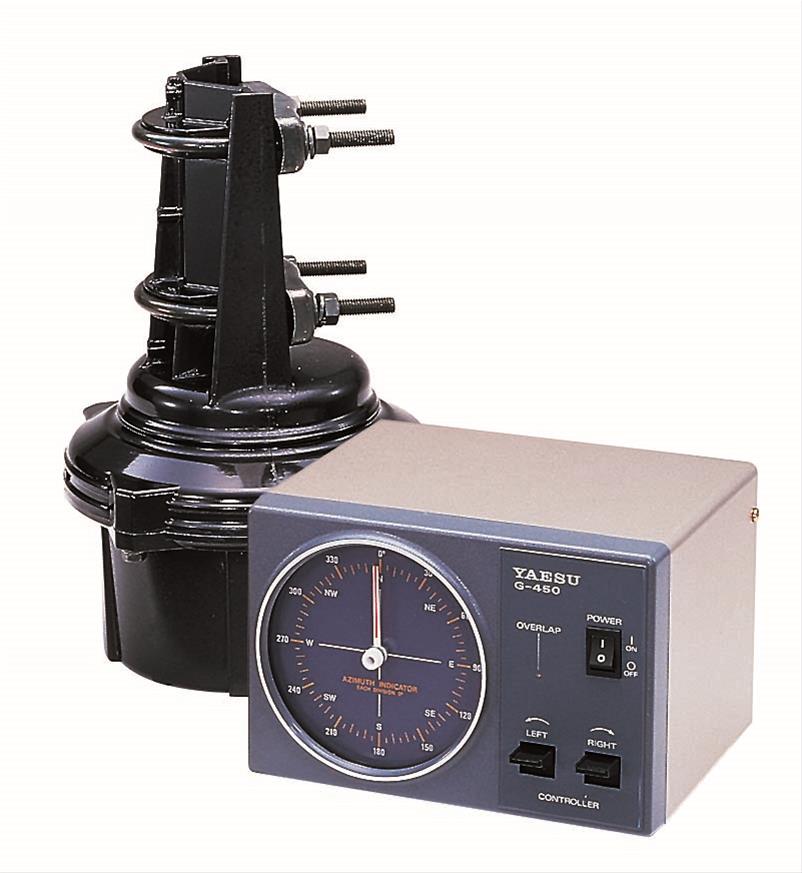

Yaesu G-450A Medium-Duty Rotator System designed for directional control of compatible HF/VHF/UHF antenna installations.
-
Input voltage: 120 Vac
-
Rotation: 450° azimuth
-
Mount type: Tower
-
Mast diameter (max): 2.480 in
-
Turning power: 516 in-lbs
-
Brake power: 2,604 in-lbs (gear reduction)
-
Wind load rating: 10.8 sq ft (inside tower), 5.4 sq ft (mast mounted)
-
Control cable: 6-conductor
-
Display: Position indicator console
Notes: For mast-top mounting use the optional GC-038 Lower Mast Clamp. For masts under 1.5 in OD, use GL-33 Mast Adjustment plates.
