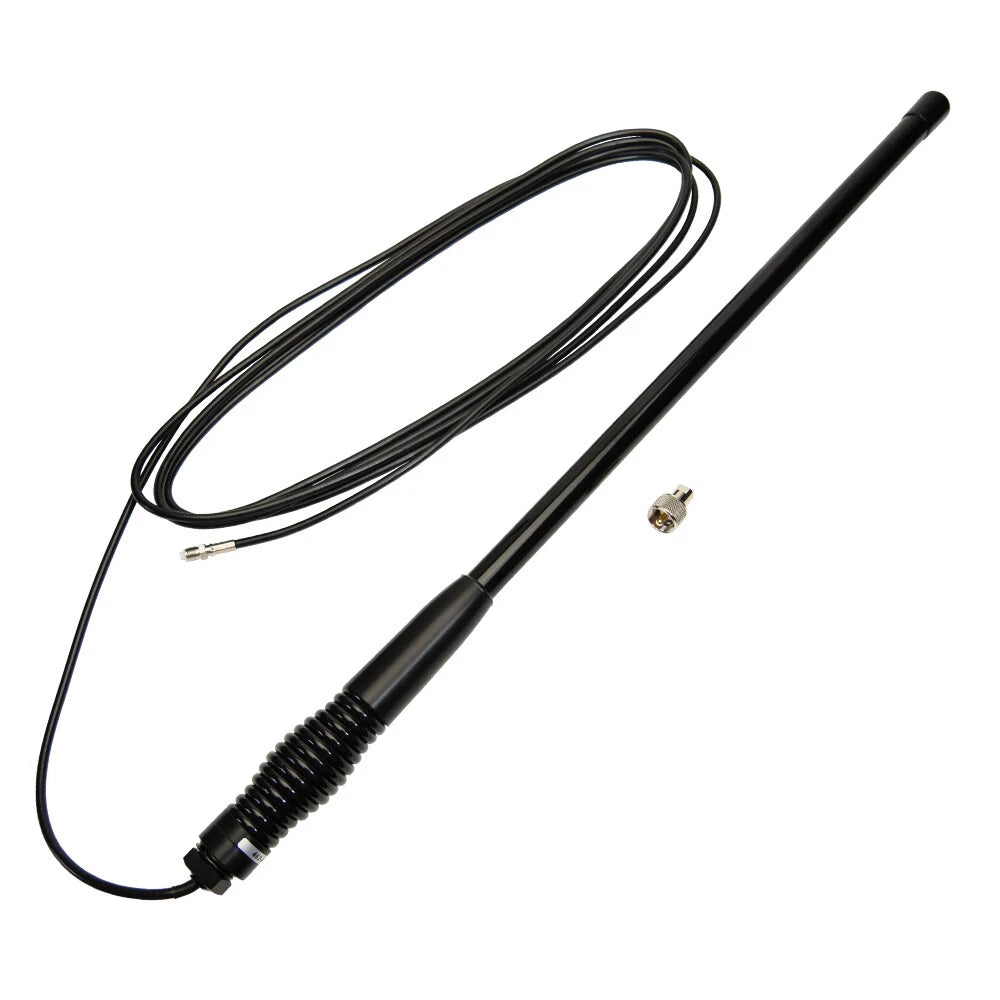

Wouxun 24" GMRS Antenna – Spring Mount w/ 14.76' Cable

-- THIS PRODUCT CONTAINS 1 PER PACK --

The Wouxun ANO-058G is a spring-mounted 24-inch GMRS antenna built for rugged offroad use. Designed for compatibility with mobile GMRS radios like the KG-1000G and KG-XS20G, this OEM Wouxun antenna delivers a tuned 462–467 MHz transmit range, excellent 3dBi gain, and omni-directional radiation—all optimized for mobile vehicle installations.

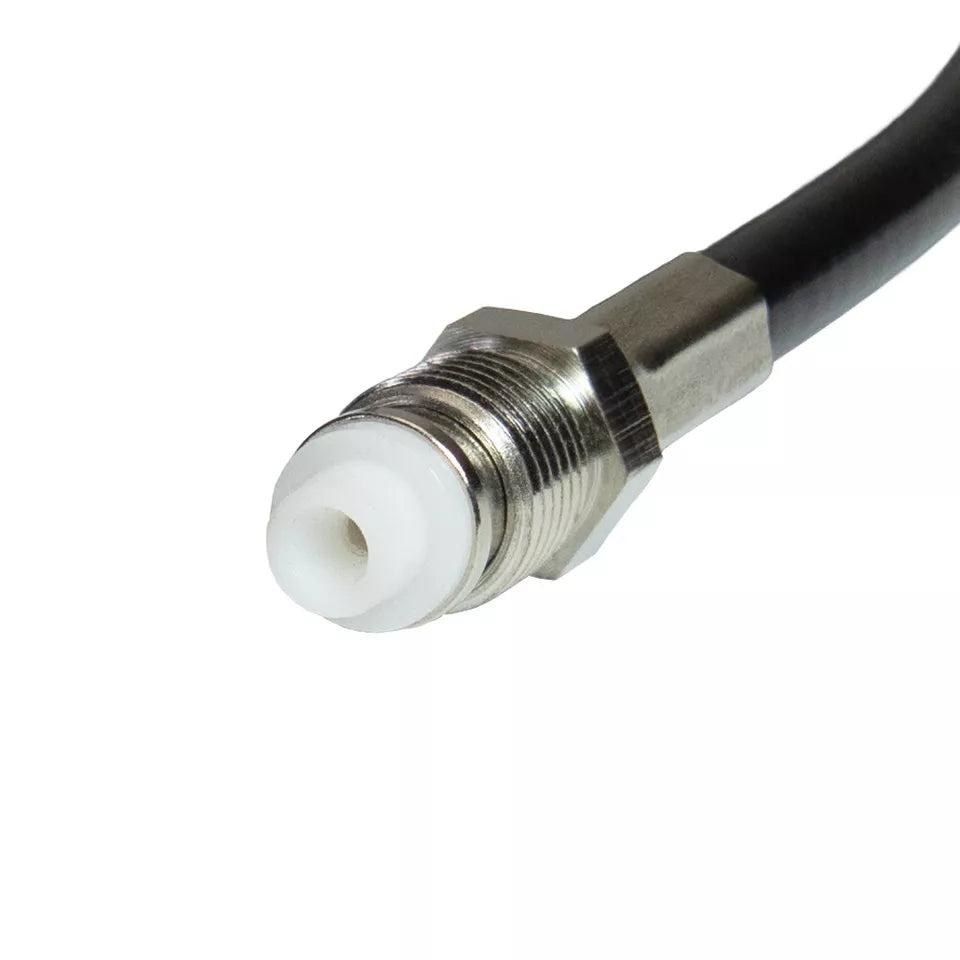

Built with reinforced materials including stainless steel, glass fiber, and POM plastic, the antenna combines durability with flexibility. It includes a 14.76 ft (4.5m) RG58U coaxial cable with a slim-profile FME connector for easy routing and a detachable PL-259 adapter for standard UHF connections.

Specifications
- **Frequency Range (Supported):** 400–470 MHz
- **Tuned TX Range:** 462–467 MHz (GMRS)
- **Gain:** 3dBi
- **Impedance:** 50 Ω
- **VSWR:** ≤1.5
- **Radiation:** Omnidirectional
- **Polarization:** Vertical
- **Radiating Material:** Copper
- **Max Power Input:** 50 Watts
- **Cable:** 14.76 ft (4.5m) RG58U w/ FME connector
- **Adapter:** FME to PL-259 (UHF Male) included
- **Mounting Style:** Spring tension base (mount not included)
- **Construction:** Glass fiber pipe, POM, stainless steel
- **Antenna Height:** 24.75 in (62.86 cm)
- **Base Diameter:** 0.42 in (10.8 mm)
- **Weight:** 1.50 lbs (680.38g)
- **Color:** Black

Key Features
- • Designed for offroad vehicles using mobile GMRS radios
- • 3dBi gain with tuned 462–467 MHz GMRS transmission
- • Spring-mounted for shock absorption on rough terrain
- • Includes 14.76 ft RG58U coax with FME to PL-259 adapter
- • Durable OEM-grade construction from Wouxun

**Note:** Antenna mount not included—sold separately.

The Wouxun ANO-058G is your go-to antenna for secure, reliable GMRS communication on rugged terrain or in mobile applications.
