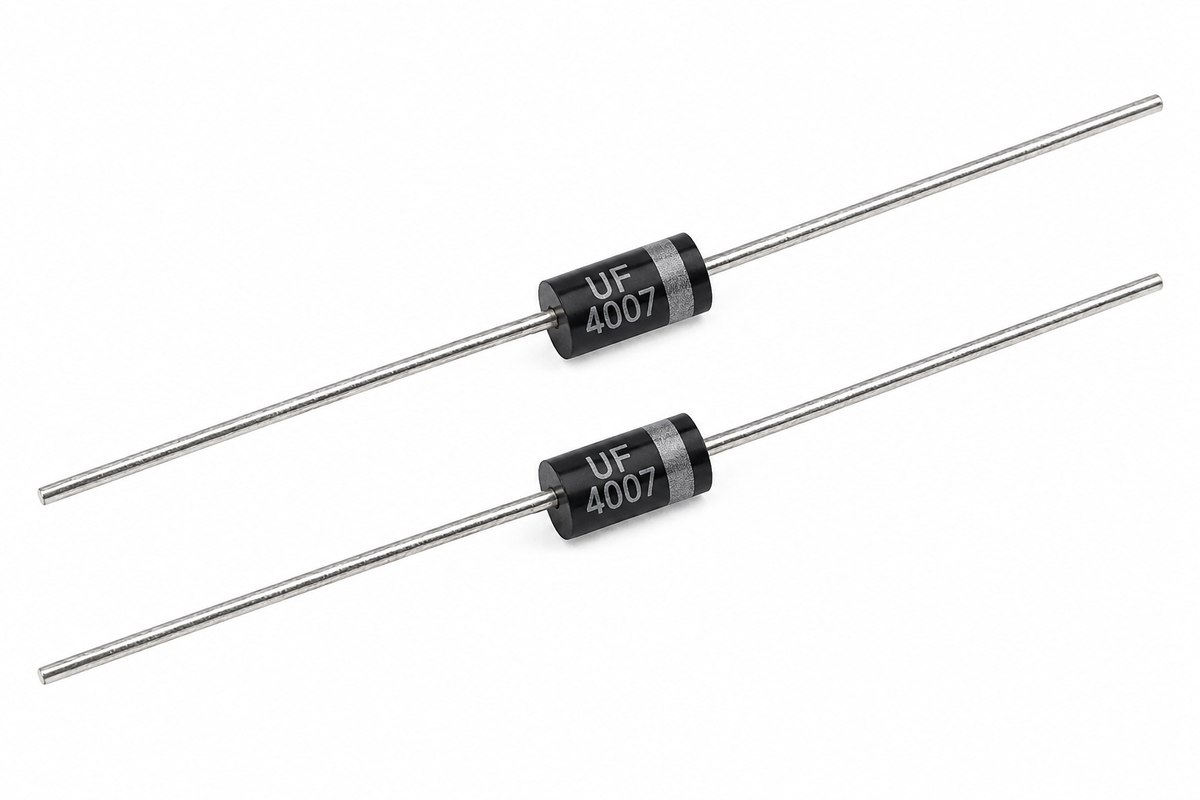

UF4007 Ultra-Fast Recovery Rectifier Diode – 1A 1000V DO-41 (2-Pack)

The UF4007 ultra-fast recovery rectifier diode is designed for high-speed switching and AC-to-DC rectification. Rated for 1A average forward rectified current and 1000V peak repetitive reverse voltage, it is suitable for power supply circuits, electronic repairs, and DIY electronics projects.

The compact DO-41 axial-lead package supports through-hole mounting. Each pack contains two diodes.

Key Features

• Ultra-fast reverse recovery for high-speed switching applications
• 1000V peak repetitive reverse voltage
• 1A average forward rectified current
• 50–75ns reverse recovery time, depending on manufacturer
• DO-41 (DO-204AL) axial-lead package
• Through-hole mounting
• Cathode identified by a band

Technical Specifications

• Part number: UF4007
• Diode type: Ultra-fast recovery rectifier
• Maximum reverse voltage: 1000V
• Average forward current: 1A
• Reverse recovery time: 50–75ns (manufacturer-dependent)
• Package: DO-41 / DO-204AL
• Mounting type: Through-hole
• Lead configuration: Axial
• Quantity: 2 diodes

Applications

• Switching power supplies
• High-frequency rectification
• Electronic equipment repairs
• Freewheeling and protection circuits
• DIY electronics and hobby projects
