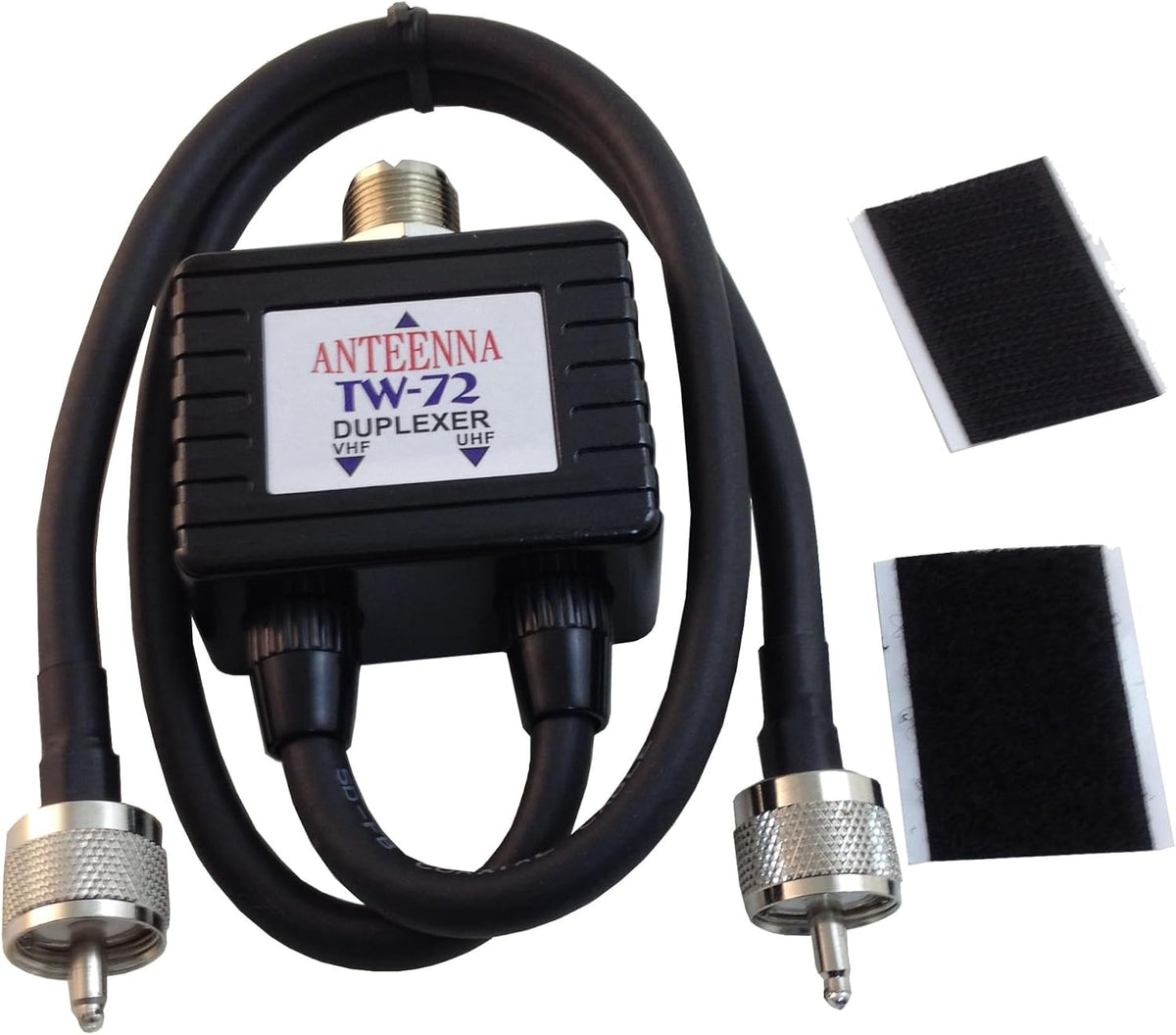

TW-72 HF/VHF/UHF Duplexer with SO-239 & PL-259 Connectors

The TW-72 duplexer provides separate connections for 1.6–150 MHz and 400–460 MHz radio equipment. It includes cable leads with PL-259 connectors and an SO-239 common connection.

Specifications

• Model: TW-72
• Frequency ranges: 1.6–150 MHz and 400–460 MHz
• Impedance: 50 ohms
• Common connector: SO-239
• Band connections: PL-259 for the 1.6–150 MHz side and PL-259 for the 400–460 MHz side
• Maximum power ratings: 1,000 W at 1.6–30 MHz; 400 W at 140–150 MHz; 250 W at 400–460 MHz
• Dimensions: 55 × 45 × 25 mm
• Cable: Included

Match the frequency range, connector type, and applicable power rating to your radio setup before use.
