TRIMMER 500 OHM 0.5W PC PIN TOP

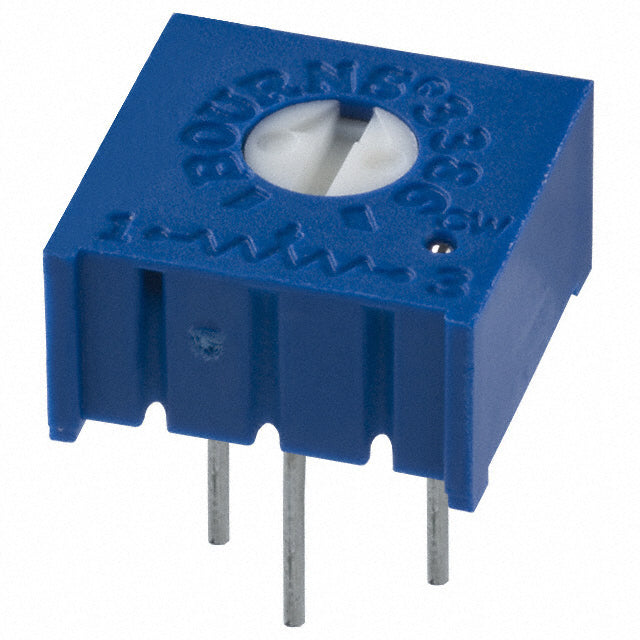

500 Ohm Trimmer Potentiometer – 0.5W PC Pin Top Adjust

The 500 Ohm 0.5W Trimmer Potentiometer is a compact and reliable component designed for precise resistance tuning in electronic circuits. With a top-adjustment mechanism and through-hole PC pin mount, it offers easy calibration and stable performance for low-resistance applications such as signal conditioning and control systems.

Specifications:

• Product Type: Trimmer Potentiometer

• Resistance: 500 Ohm

• Power Rating: 0.5 Watt

• Adjustment Type: Top Adjust

• Mounting Type: Through-hole, PC Pin

• Tolerance: ±10%

• Rotation: Single or multi-turn (model dependent)

• Operating Temperature Range: -55°C to +125°C

• Applications: Fine-tuning, calibration, voltage trimming, signal control

Features:

• Low-resistance 500 Ohm value for sensitive circuit tuning

• 0.5W rating ideal for compact, low-power designs

• Top adjust for easy and accessible in-circuit adjustment

• Stable and secure PC pin mounting

• Durable and long-lasting for frequent calibration needs

• Great for use in test equipment, audio circuits, and precision controls
