6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch
6x6mm Momentary Tactile Push Button Switch

6x6mm Momentary Tactile Push Button Switch

In stock
UPC: JF-0005-1-6.5
(0)
$3.99
Height

Compact Push Button for PCB Projects and Repairs

This 6mm x 6mm momentary tactile push button switch provides a simple manual input for electronics projects, through-hole PCB assemblies, and replacement-switch repairs. The circuit closes while the button is pressed, making it suitable for designs that need a temporary button input rather than a maintained on/off position.

Choose from eight height options to match your project. When replacing an existing switch, compare its dimensions, mounting layout, and required electrical ratings before ordering.

Features and Specifications

  • Body size: 6mm x 6mm.
  • Switch type: Momentary tactile push button.
  • Operation: Circuit closes only while pressed.
  • Mounting: Through-hole PCB.

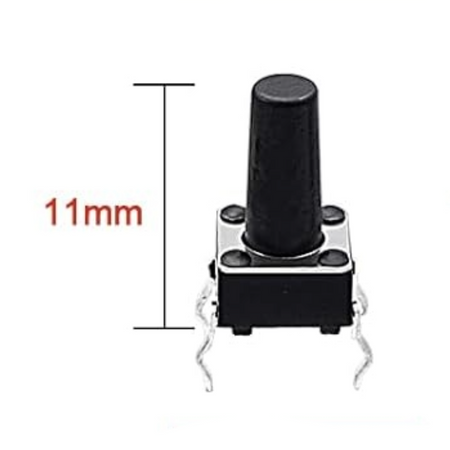

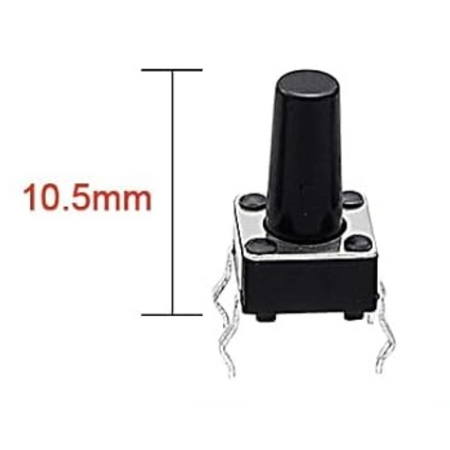

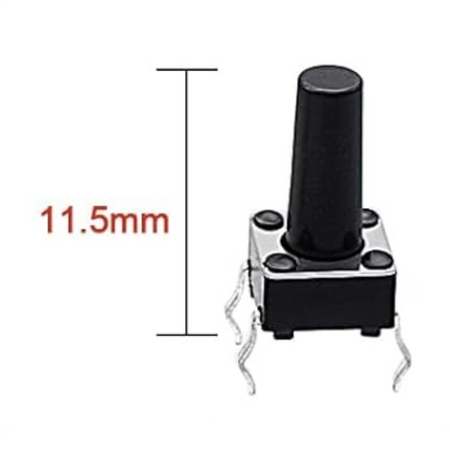

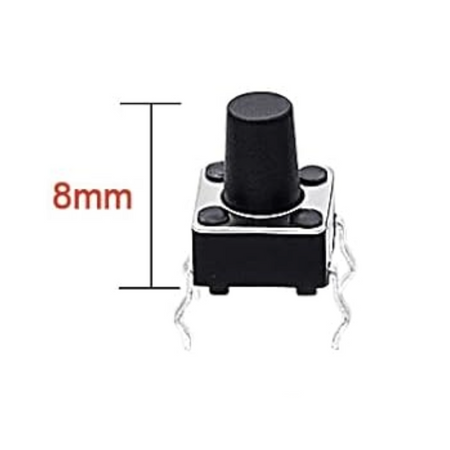

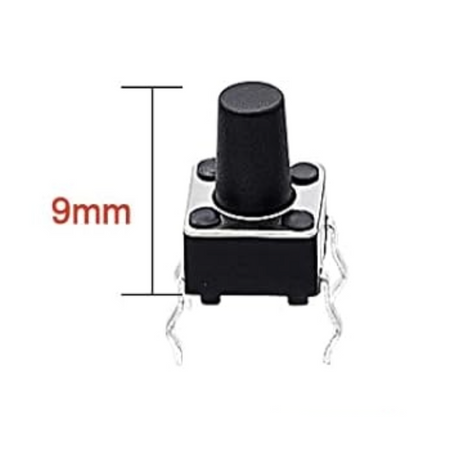

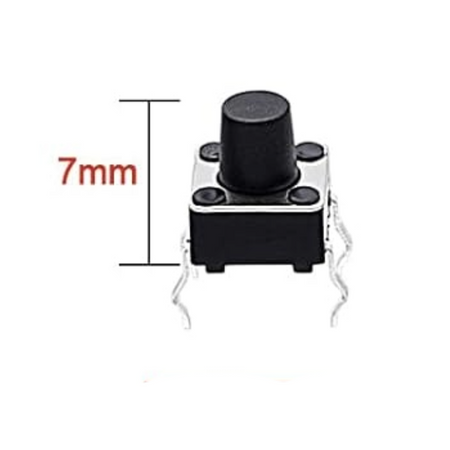

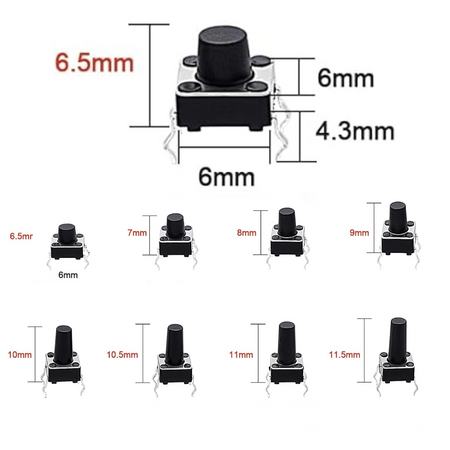

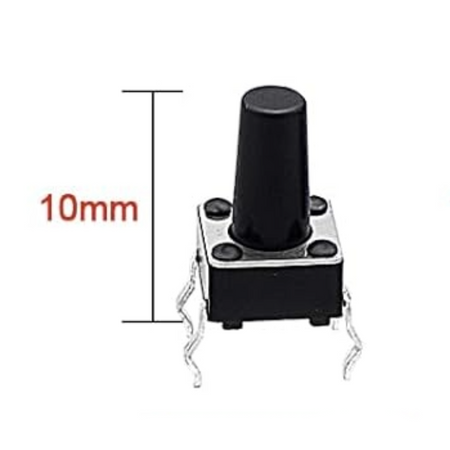

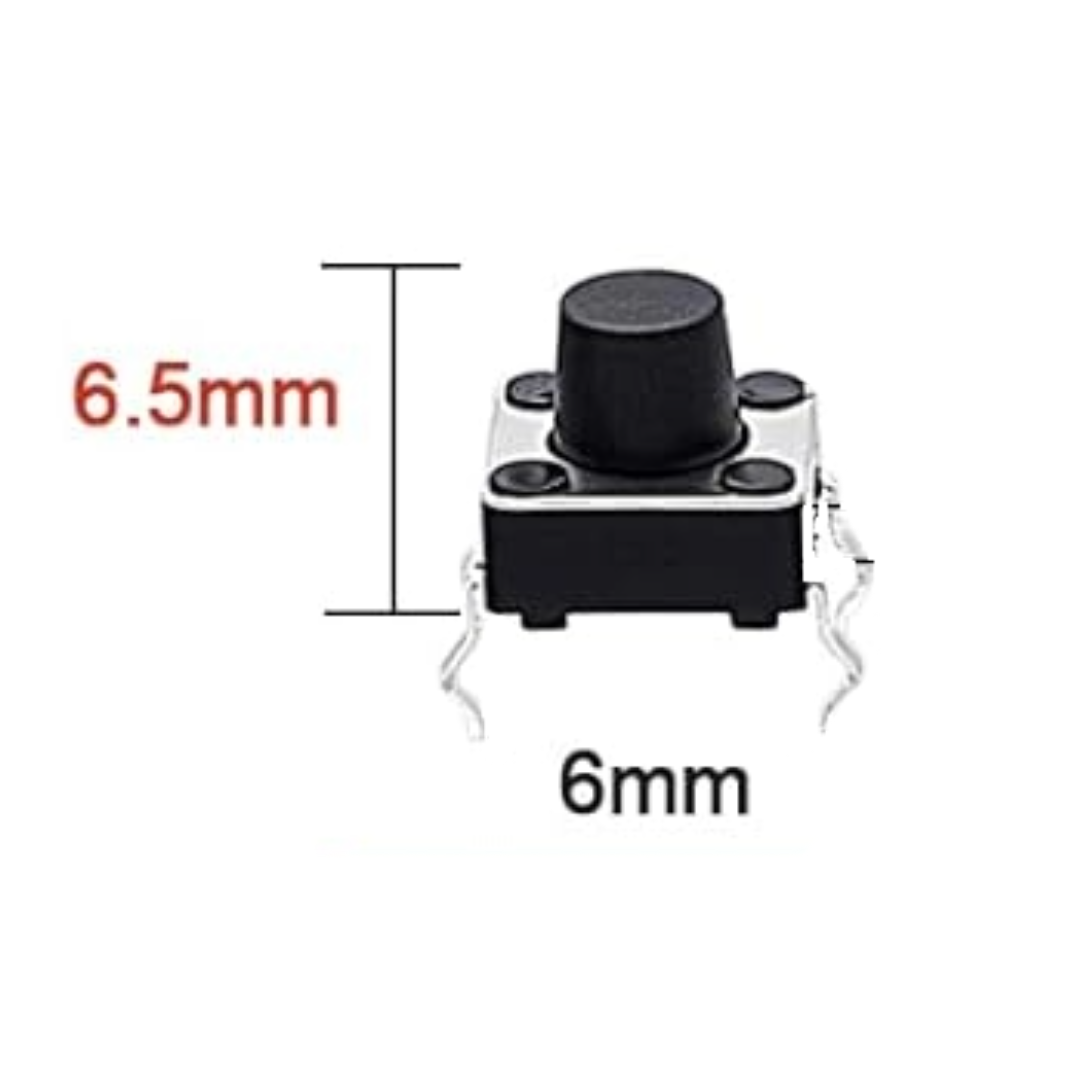

  • Height options: 6.5mm, 7mm, 8mm, 9mm, 10mm, 10.5mm, 11mm, and 11.5mm.

Selecting the Right Height

Select the required height from the variant menu. Match the selected height to the clearance and button reach needed in your enclosure or PCB assembly; the 6mm x 6mm body size remains the same across the listed options.

Applications

Use this switch for custom control panels, electronics prototyping, and repairs where the footprint and switch operation match the original design. It can also serve as a button input in Arduino or Raspberry Pi projects when used with an appropriately designed circuit.

Before ordering: Contact layout, current and voltage ratings, and package quantity are not specified in this listing. Confirm any requirements that are critical to your application.
