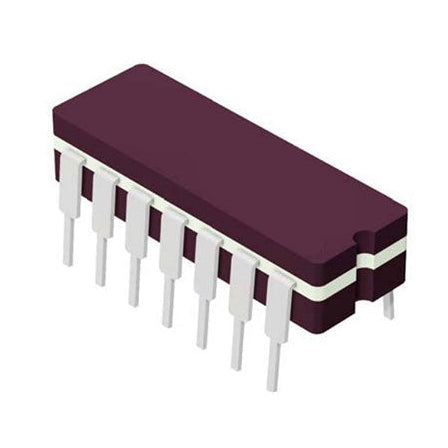

SN74LS11N And Gate IC 3 Channel 14-PDIP

--THIS PRODUCT CONTAINS 1 PER PACK--

AND Gate IC 3 Channel 14-PDIP

IC GATE AND 3CH 3-INP 14DIP

DATASHEET

Voltage - Supply
4.75V ~ 5.25V
Current - Quiescent (Max)
3.6 mA
Current - Output High, Low
400µA, 8mA
Input Logic Level - Low
0.8V
Input Logic Level - High
2V
Max Propagation Delay @ V, Max CL
20ns @ 5V, 15pF
Operating Temperature
0°C ~ 70°C
Mounting Type
Through Hole
Supplier Device Package
14-PDIP
Package / Case
14-DIP (0.300", 7.62mm)
Base Product Number
74LS11
