Realistic TRC-479 CB Mobile Radio — In-Depth Product Description

The Realistic TRC-479 is a classic 40-channel mobile Citizens Band (CB) radio transceiver originally sold by Radio Shack under its Realistic brand. Designed primarily for in-vehicle communication, the TRC-479 combines reliable analog circuitry with straightforward controls, making it well suited for truckers, hobbyists, and off-road users who need dependable short-range communication on the CB band.

Built during the late era of analog CB radio development, the TRC-479 reflects the rugged engineering and simplicity that defined mobile communications equipment of the 1970s and early 1980s. With crystal-controlled frequency stability, a double-conversion receiver, and a full set of 40 CB channels, it provides solid voice communication while maintaining the ease of use expected from a dashboard-mounted radio.

Overview

The Realistic TRC-479 is a compact mobile AM CB transceiver that operates on the standard 26.965–27.405 MHz Citizens Band spectrum. It was designed to run from a vehicle’s 12-volt negative-ground electrical system, making it easy to install in cars, trucks, or utility vehicles.

The radio delivers up to 4 watts of AM carrier power, the maximum permitted by FCC regulations for CB radios. Its receiver uses a double-conversion superheterodyne architecture, providing improved selectivity and sensitivity compared to single-conversion designs.

With its sturdy metal chassis and simple control layout, the TRC-479 was built to withstand daily mobile operation while remaining accessible to users unfamiliar with more complex communications equipment.

Key Features

1. Full 40-Channel CB Operation

The TRC-479 covers all 40 standard CB channels, allowing users to communicate across the full Citizens Band frequency range.

Frequency coverage:

• 26.965 MHz – 27.405 MHz

Channel selection is controlled via a front-panel rotary knob, allowing fast switching between channels for monitoring road information, emergency traffic, or local communications.

2. Crystal-Controlled PLL Synthesized Transmitter

The transmitter uses a phase-locked loop (PLL) synthesized system with crystal stabilization to ensure precise frequency output. This design prevents channel drift and keeps transmissions aligned with the exact CB channel frequency.

Key transmitter characteristics:

• Carrier output power: 3.6–4.4 watts

• Frequency tolerance: approximately ±100 Hz under normal conditions

• Capable of 100% AM modulation

These characteristics allow the radio to produce clear transmissions within FCC-compliant limits.

3. Double-Conversion Superheterodyne Receiver

The receiver uses a double-conversion superheterodyne design, a widely used architecture for improving signal quality and filtering.

Benefits of this design include:

• Better rejection of adjacent channel interference

• Higher sensitivity to weak signals

• Reduced image frequency interference

• Improved audio clarity

Typical receiver sensitivity can detect signals as low as 0.5 µV for a 10 dB signal-to-noise ratio, enabling reliable reception even when signals are faint.

4. Automatic Noise Limiter (ANL)

Mobile radios frequently encounter electrical noise from vehicle ignition systems and other electronics. The TRC-479 includes an Automatic Noise Limiter (ANL) circuit that reduces this type of interference.

Advantages include:

• Reduced ignition noise

• Improved voice clarity

• Better reception in urban or high-electrical-noise environments

This feature is particularly valuable for drivers operating in older vehicles or heavy equipment.

5. Powerful Audio Output

Despite its compact size, the TRC-479 produces up to 6 watts of maximum audio output, delivering loud and intelligible sound through an external speaker.

Typical performance:

• Nominal audio output: 5 watts

• Speaker impedance: 8 ohms

• Frequency response optimized for voice communications

The high audio output ensures the radio can be heard clearly even in noisy vehicle cabins.

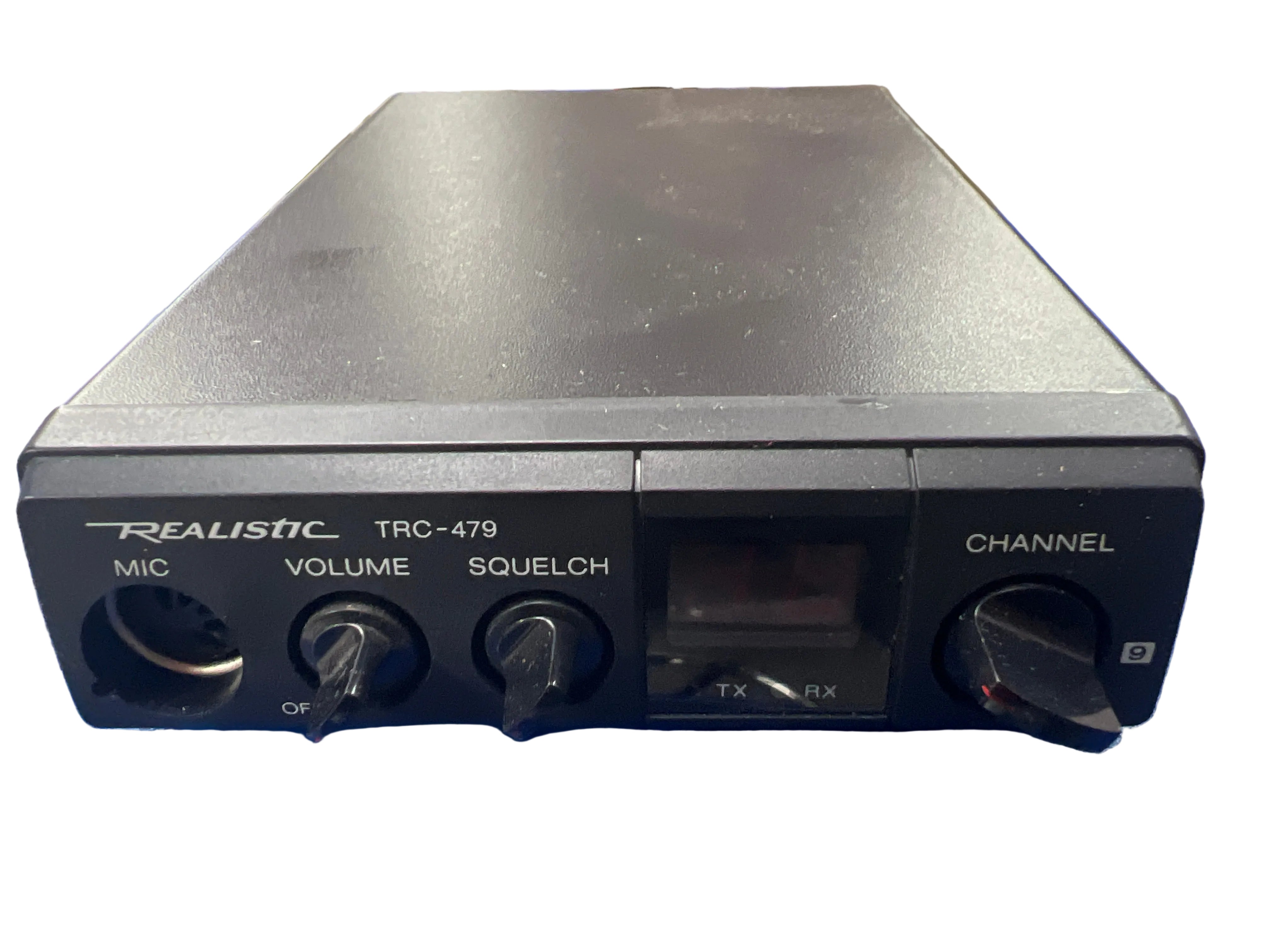

Controls and Front Panel Layout

The TRC-479 features a simple, intuitive control interface designed for quick operation while driving.

Typical front-panel controls include:

• Channel Selector – Rotary knob for choosing among the 40 CB channels.

• Volume Control – Adjusts speaker output level.

• Squelch Control – Eliminates background noise when no signal is present.

• Microphone Connector – Accepts the standard Realistic handheld microphone.

• Channel Indicator – Displays the selected channel.

• Transmit/Receive Indicator – Shows radio operating status.

The microphone typically includes a push-to-talk (PTT) switch, allowing the operator to transmit while holding the microphone.

Electrical Specifications

These specifications align with standard CB radio requirements and ensure compatibility with typical mobile antennas and accessories.

Design and Construction

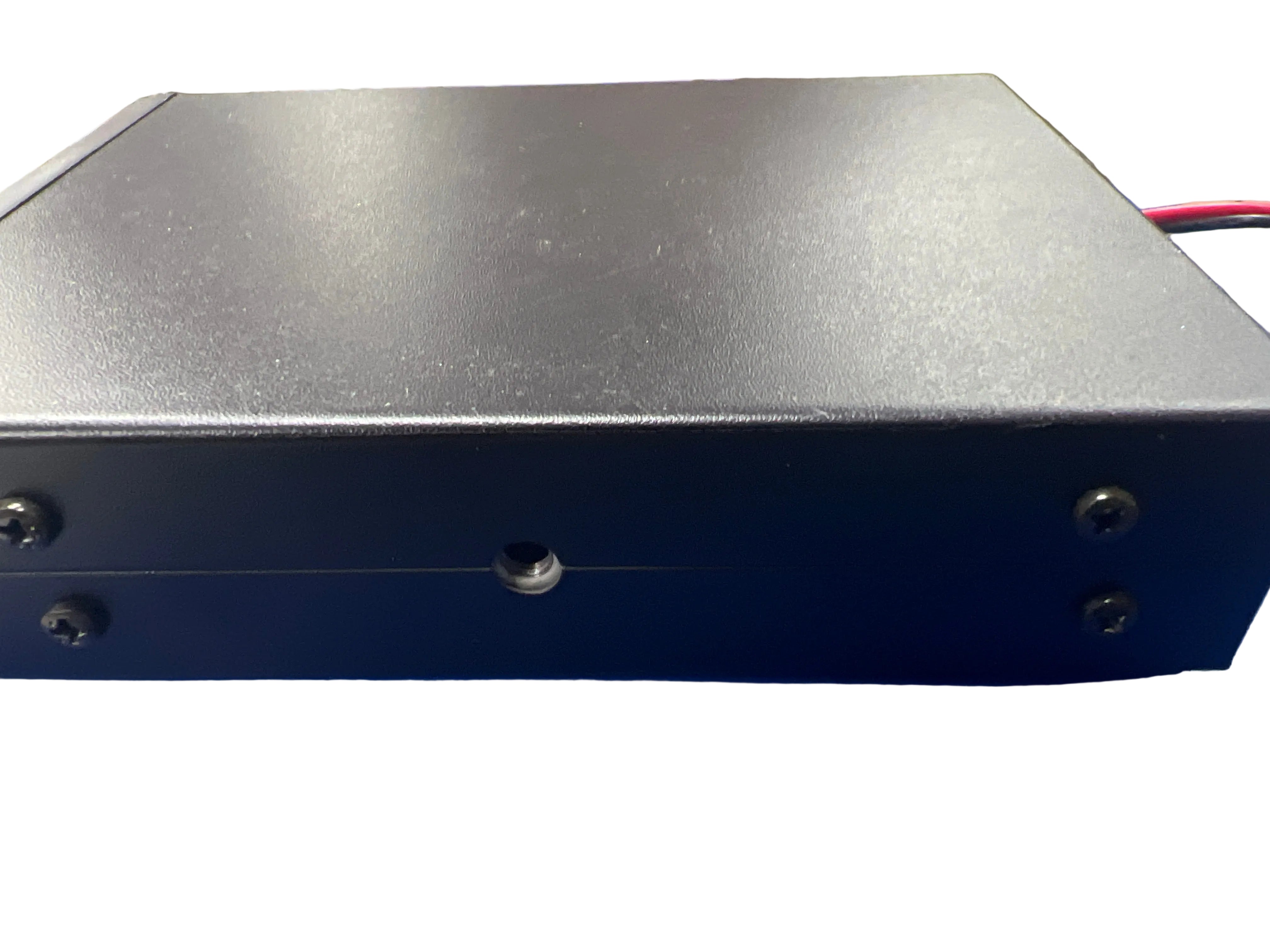

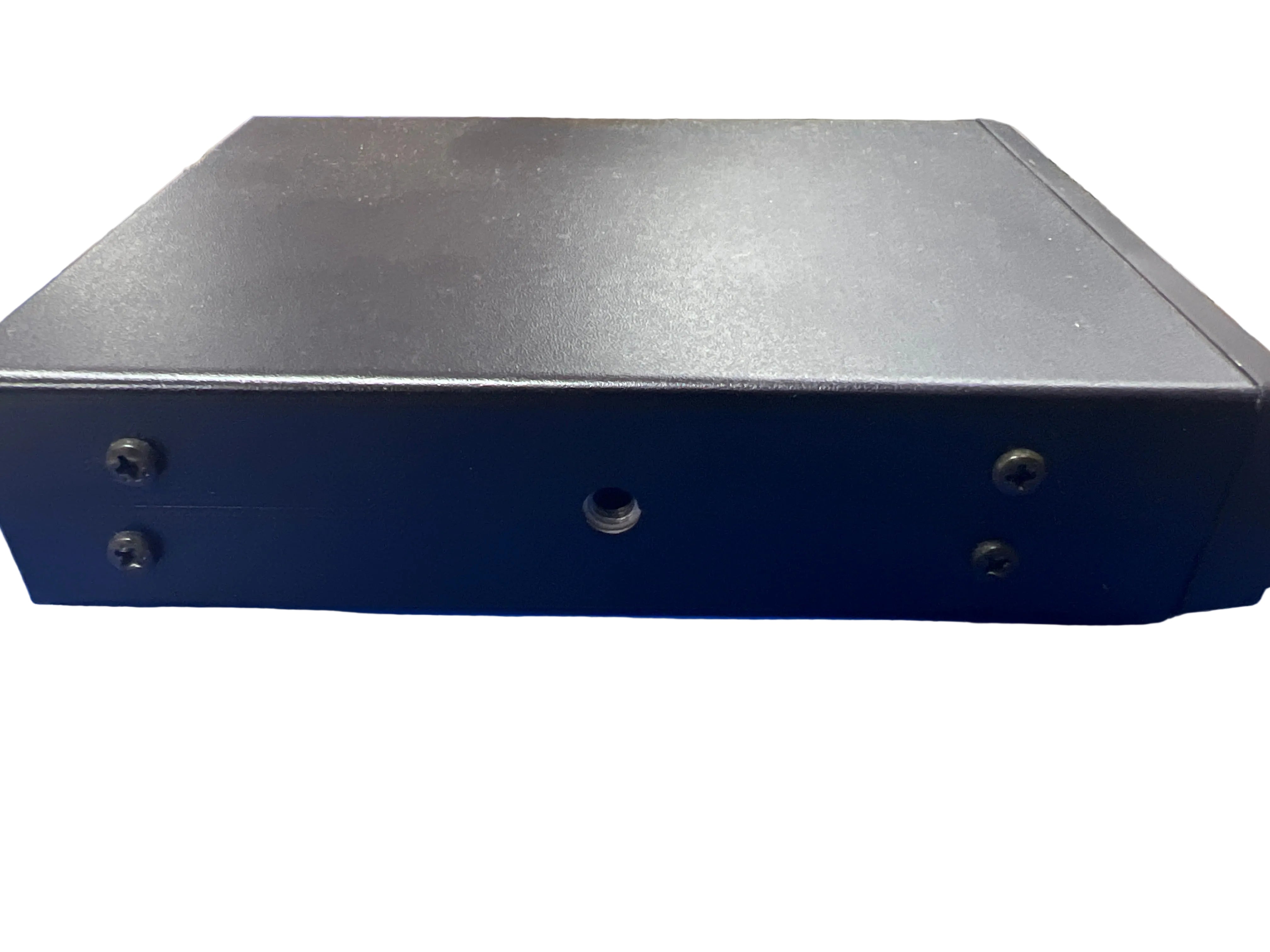

The TRC-479 is housed in a rugged metal enclosure with a black front panel and silver control accents. The compact design allows it to fit easily beneath a vehicle dashboard or within a center console mount.

Construction highlights:

• Metal chassis for durability

• Internal RF shielding for reduced interference

• Heat-resistant components for automotive environments

• Compact footprint (approx. 2 lb weight)

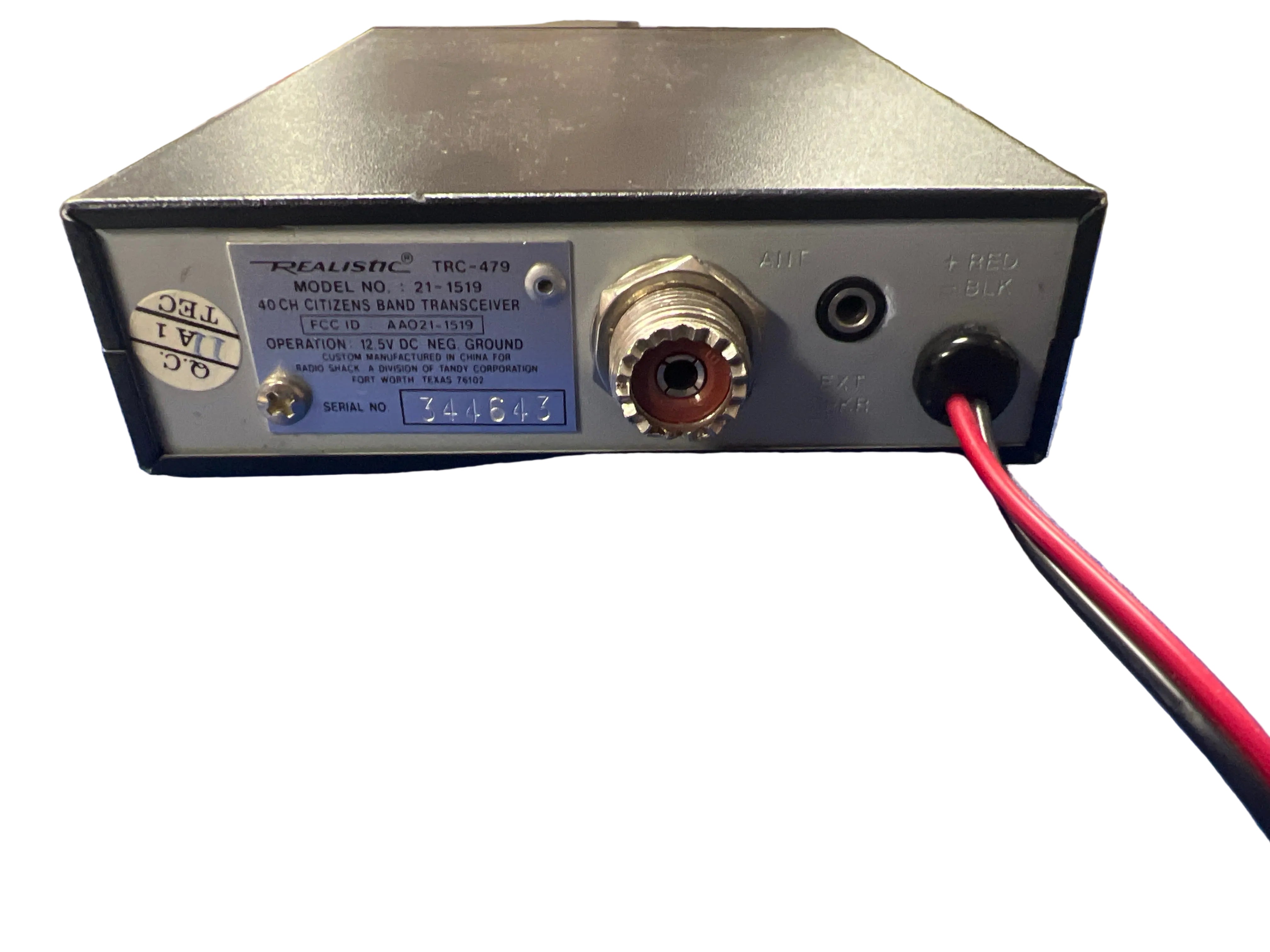

The radio is designed to connect to a 50-ohm mobile CB antenna, usually mounted on a vehicle roof, bumper, or mirror bracket.

Because CB radio requires no license in the United States, the TRC-479 provided an accessible communications option for the general public.
