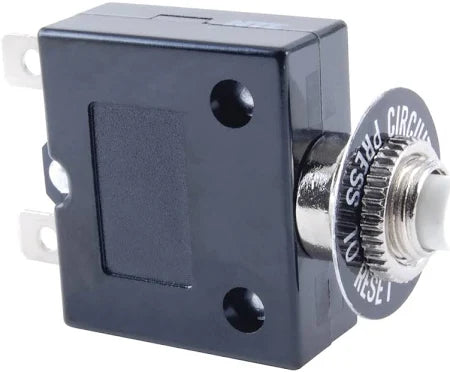

NTE R58-1A THERMAL CKT BREAKER-1A

NTE R58-1A THERMAL CKT BREAKER-1A

Maximum Operating Voltages:

50 VDC; 250 VAC, @ 50/60 Hz

Dielectric Strength:

1500VAC RMS

Resettable Overload Capacity:

Ten times rated current

Interrupt Capacity:

2000 Amps at 50 VDC

1000 Amps at 250 VAC

Mechanical Characteristics

Termination:

.250 (6.35) Quick Connect Terminals

NOTE: Soldering to terminals is not recommended.

Shock:

Withstands to 10 g

Endurance Cycling:

Over 1000 cycles at 200% of rated load.

Vibration:

Withstands to 10 g at 10 to 55 Hz.

Weight:

Less than 1.5 ozs. (42.5 g)

NOTE: 30A and 35A devices

NOT UL or CSA.
