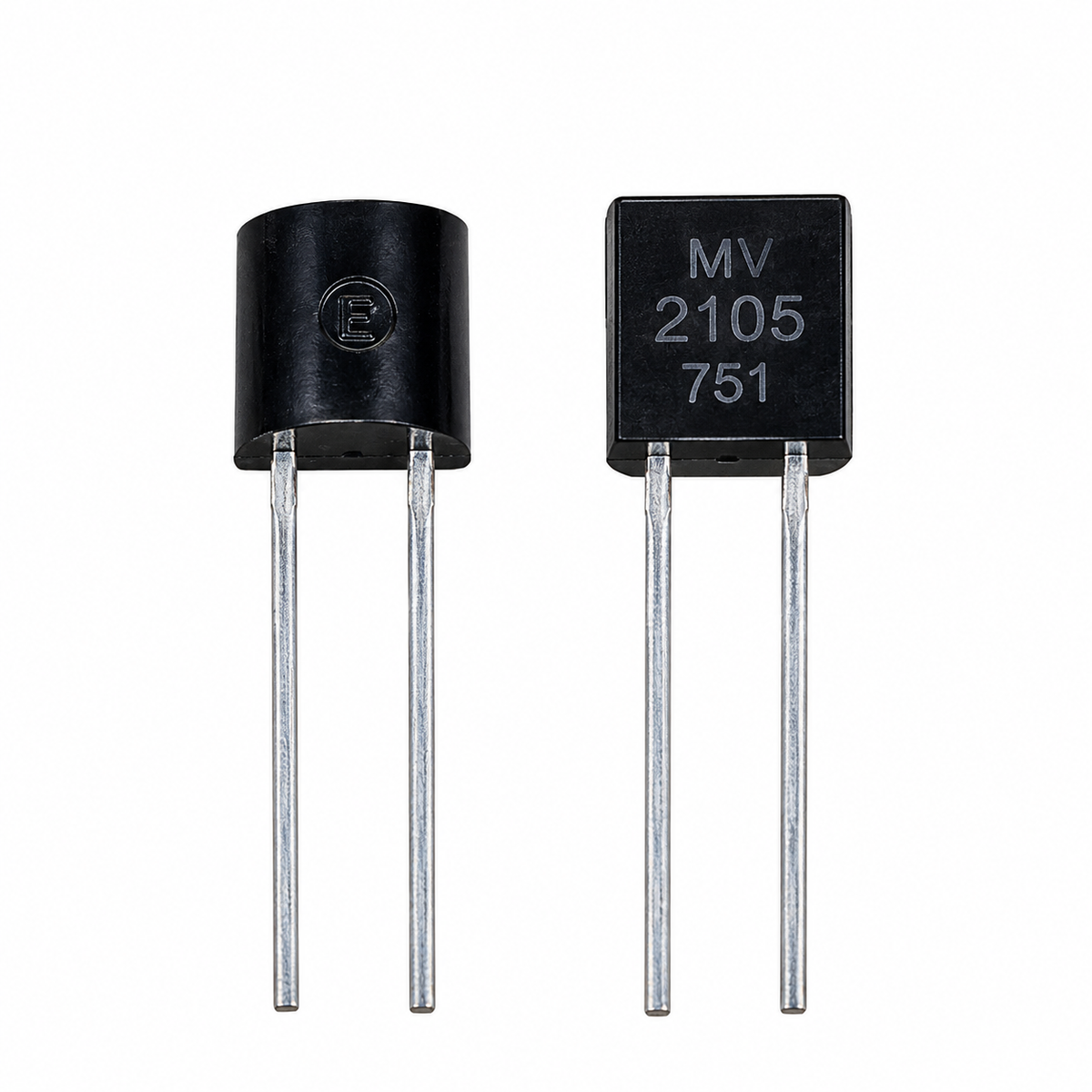

MV2105 Varactor Tuning Diode, 30 V, TO-92-2, 1-Pack

The MV2105 is a voltage-variable capacitance diode, also called a varactor or varicap. Its capacitance changes with reverse-bias voltage for RF tuning and frequency-control circuits, including voltage-controlled oscillators (VCOs) and electronic radio tuning.

Includes 1 diode.

Specifications

• Part number: MV2105
• Type: Varactor / tuning diode
• Maximum reverse voltage: 30 V
• Package: TO-92, 2 leads, through-hole mounting
• Listed nominal capacitance: 15 pF; test conditions not specified
• Listed capacitance at 4 V, 1 MHz: 16.5 pF nominal
• Capacitance tolerance: ±10%
• Capacitance ratio: 3.2 (C2/C30)
• Quality factor (Q): 400 at 4 V, 50 MHz
• Maximum forward current: 200 mA
• Maximum power dissipation: 280 mW at 25°C
• Maximum junction temperature: 150°C
• Pin 1: Anode
• Pin 2: Cathode

For replacement applications, verify capacitance at the required bias voltage, tuning ratio, package, and pin orientation against your circuit requirements. The listed 15 pF value does not include test conditions and should not be treated as equivalent to the 16.5 pF value specified at 4 V.
