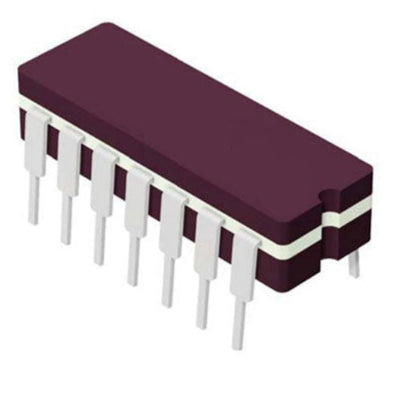

Inverter IC 6 Channel Open Collector 14-PDIP

--THIS PRODUCT CONTAINS 1 PER PACK--

IC INVERTER 6CH 1-INP 14DIP

Inverter IC 6 Channel Open Collector 14-PDIP

Logic Type:

Inverter

Number of Circuits:

6

Number of Inputs:

1

Features:

Open Collector

Voltage - Supply:

4.75V ~ 5.25V

Current - Output High, Low:

-, 8mA

Input Logic Level - Low:

0.8V

Input Logic Level - High:

2V

Max Propagation Delay @ V, Max CL:

32ns @ 5V, 15pF

Operating Temperature:

0°C ~ 70°C

Mounting Type:

Through Hole

Supplier Device Package:

14-PDIP

Package / Case:

14-DIP (0.300", 7.62mm)

Base Product Number:

74LS05

DATASHEET
