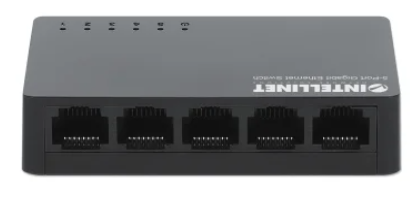

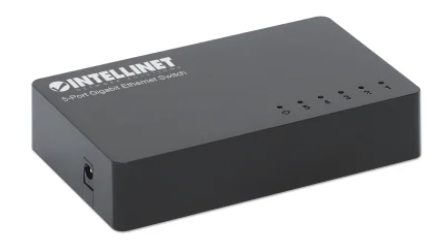

Intellinet® 5-Port Gigabit Ethernet Switch – Model 561747

Intellinet Network Solutions® 5-Port Gigabit Ethernet Switch – Compact Unmanaged High-Speed LAN Expansion (Model 561747)

The Intellinet® 5-Port Gigabit Ethernet Switch (561747) provides reliable, high-speed connectivity for small office, home, or network expansion needs. With five auto-sensing 10/100/1000 Mbps ports, this unmanaged switch enables plug-and-play network integration with full-duplex data transfer and non-blocking architecture. Its compact metal housing and fanless design make it ideal for desktops or network closets requiring silent operation.

Specifications:

• Model: 561747

• Ports: 5 x RJ45 Gigabit Ethernet ports (10/100/1000 Mbps auto-negotiation)

• Type: Unmanaged switch

• Network Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x

• Switching Capacity: 10 Gbps (non-blocking throughput)

• MAC Address Table: 2K entries

• Power Supply: External (included)

• Housing: Metal

• Mounting: Desktop

• Cooling: Fanless for silent operation

• LED Indicators: Power, link/activity per port

Features:

• Supports full-duplex and half-duplex operation

• Auto MDI/MDI-X eliminates the need for crossover cables

• Low power consumption with IEEE 802.3az Energy Efficient Ethernet

• Fanless, compact design for quiet use in any environment

• Easy plug-and-play installation with no configuration required

Perfect for small businesses, home offices, or media setups needing reliable and simple network expansion.
