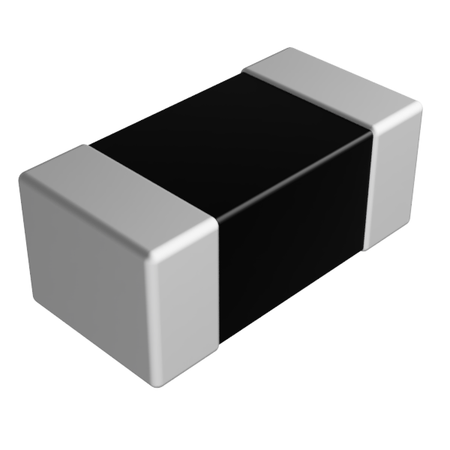

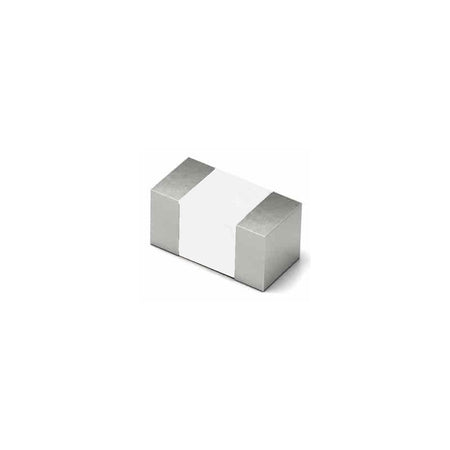

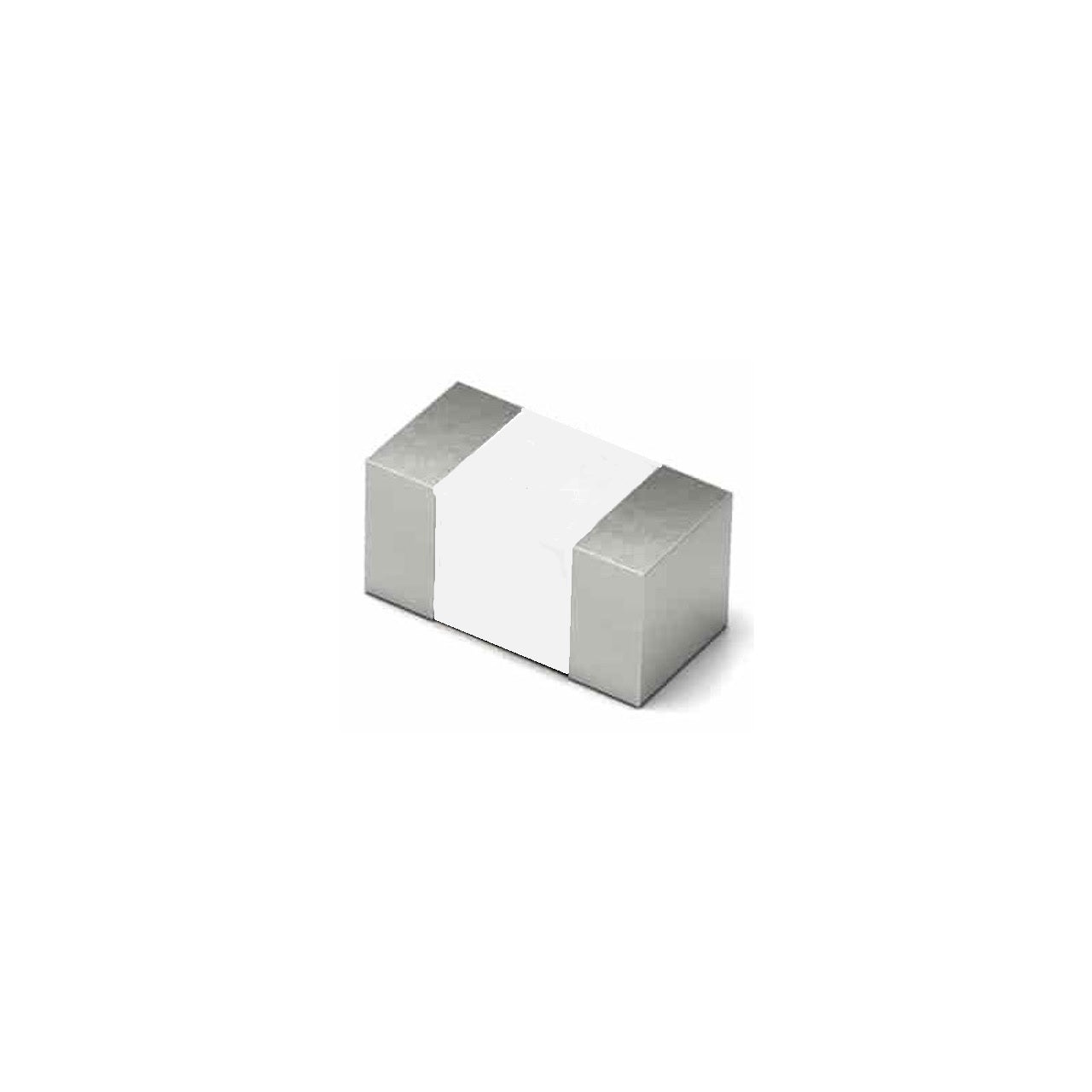

0805 SMD Inductor – High Q Wirewound Ceramic Chip Inductor 20Pcs.
Regular price
$1.39
0805 SMD Inductor – High Q Wirewound Ceramic Chip Inductor 20Pcs.
Designed for 20Pcs high-frequency circuit applications, the 0805 Series wirewound ceramic chip inductors deliver some of the highest Q factors available in an 0805 package. Built for strong current handling, low DCR, and excellent self resonance, these inductors are a solid choice for RF, matching, filtering, and precision electronic designs.
With inductance values ranging from 2.6 nH to 820 nH, this series offers flexibility across a wide range of applications while maintaining tight tolerances of ±2% for most values. The wirewound construction helps achieve very high self resonance, with SRF performance reaching up to 9.5 GHz.
Features:
- 0805 surface mount inductor
- High Q wirewound ceramic chip construction
- Excellent current handling
- Low DCR ratings
- Inductance range from 2.6 nH to 820 nH
- Tight tolerances of ±2% for most values
- High self resonance up to 9.5 GHz
- Ideal for RF, filtering, tuning, and impedance matching circuits
Applications:
- RF circuit design
- High-frequency filtering
- Matching networks
- Wireless communication devices
- Repair, replacement, and prototyping
