Panel Mount Fuse Holder 5x20mm with 10A/15A Fuses – Pre-Wired

-- THIS PRODUCT CONTAINS 1 HOLDER WITH 2 FUSES PER PACK --

This panel mount fuse holder is designed to securely house standard 5x20mm glass tube fuses for dependable circuit protection across a range of electrical devices. Rated for up to 250V AC or 32V DC, it’s ideal for both low- and high-voltage systems, making it a perfect choice for automotive, marine, and household applications.

Installation is easy and secure—just insert it into a panel hole and tighten the threaded nut. The waterproof screw cap keeps moisture and contaminants out, and the pre-soldered leads make wiring straightforward and clean. It includes both a 10A and a 15A fast-blow fuse so you can tailor protection to your specific application needs.

**Specifications**
- **Fuse Size:** 5x20mm glass tube
- **Holder Rating:** Up to 250V AC / 32V DC
- **Current Rating:** 1–15A supported (includes 10A & 15A fuses)
- **Mounting Style:** Panel mount with screw nut

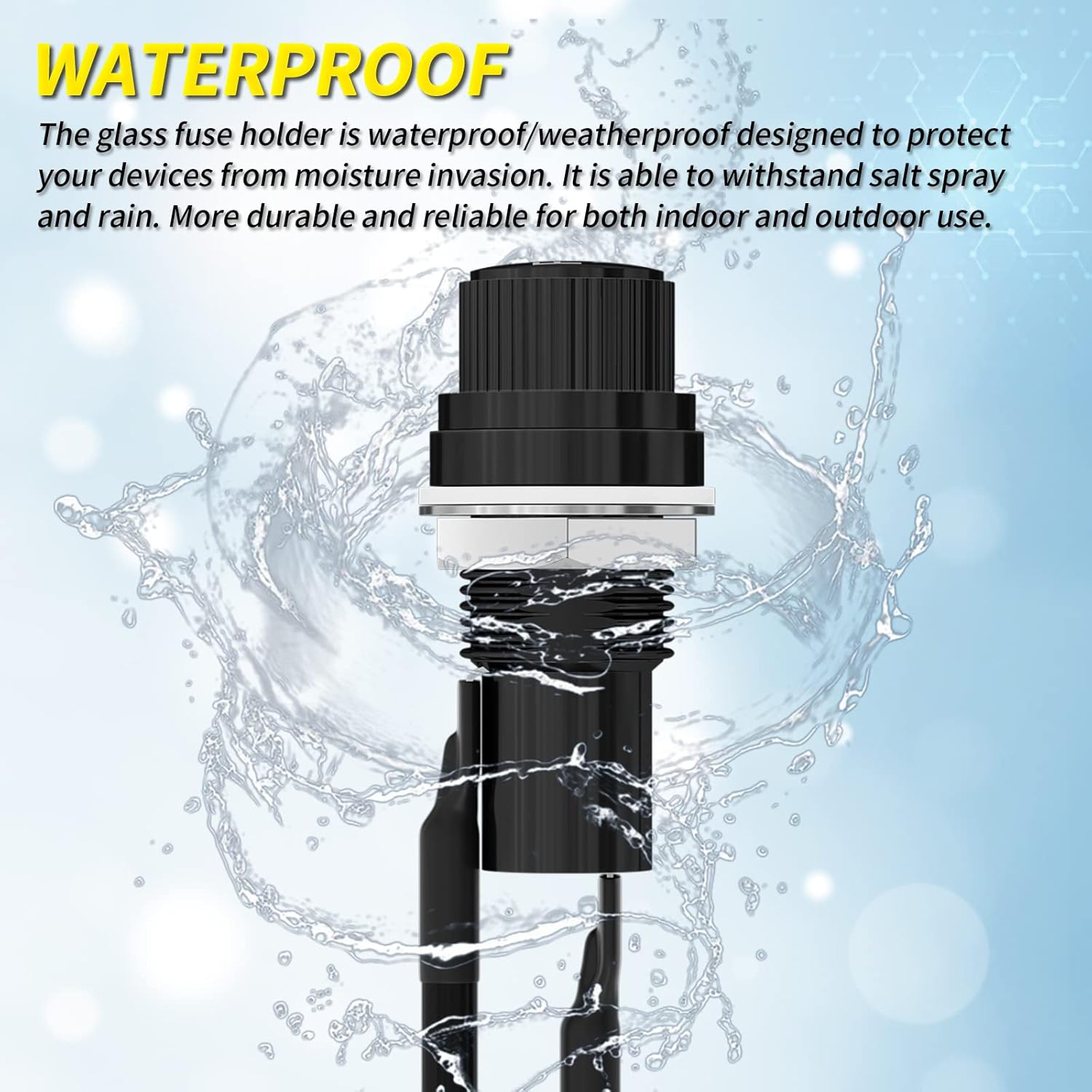

- **Cap Style:** Waterproof/weatherproof screw top

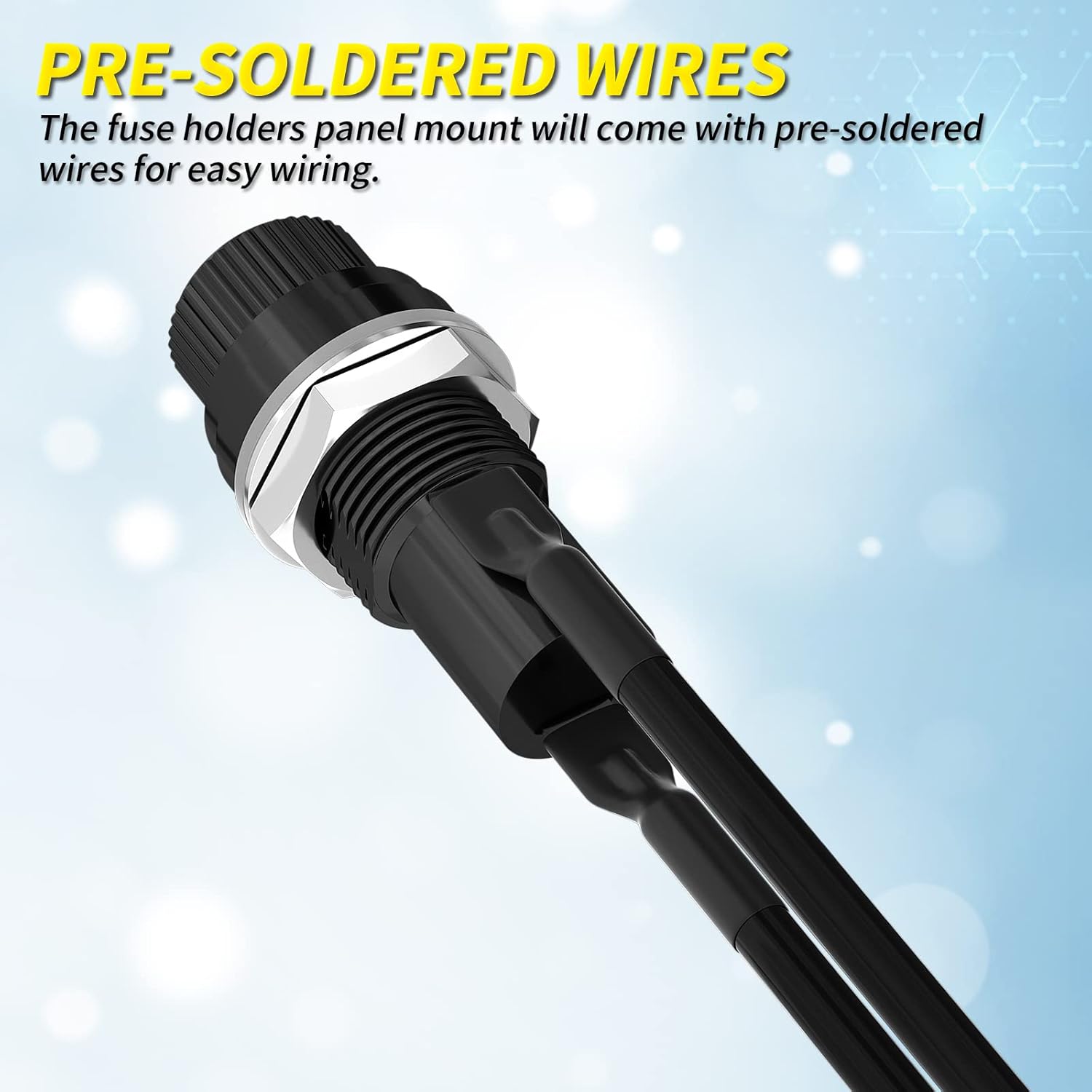

- **Connection Type:** Pre-soldered 18 AWG lead wires

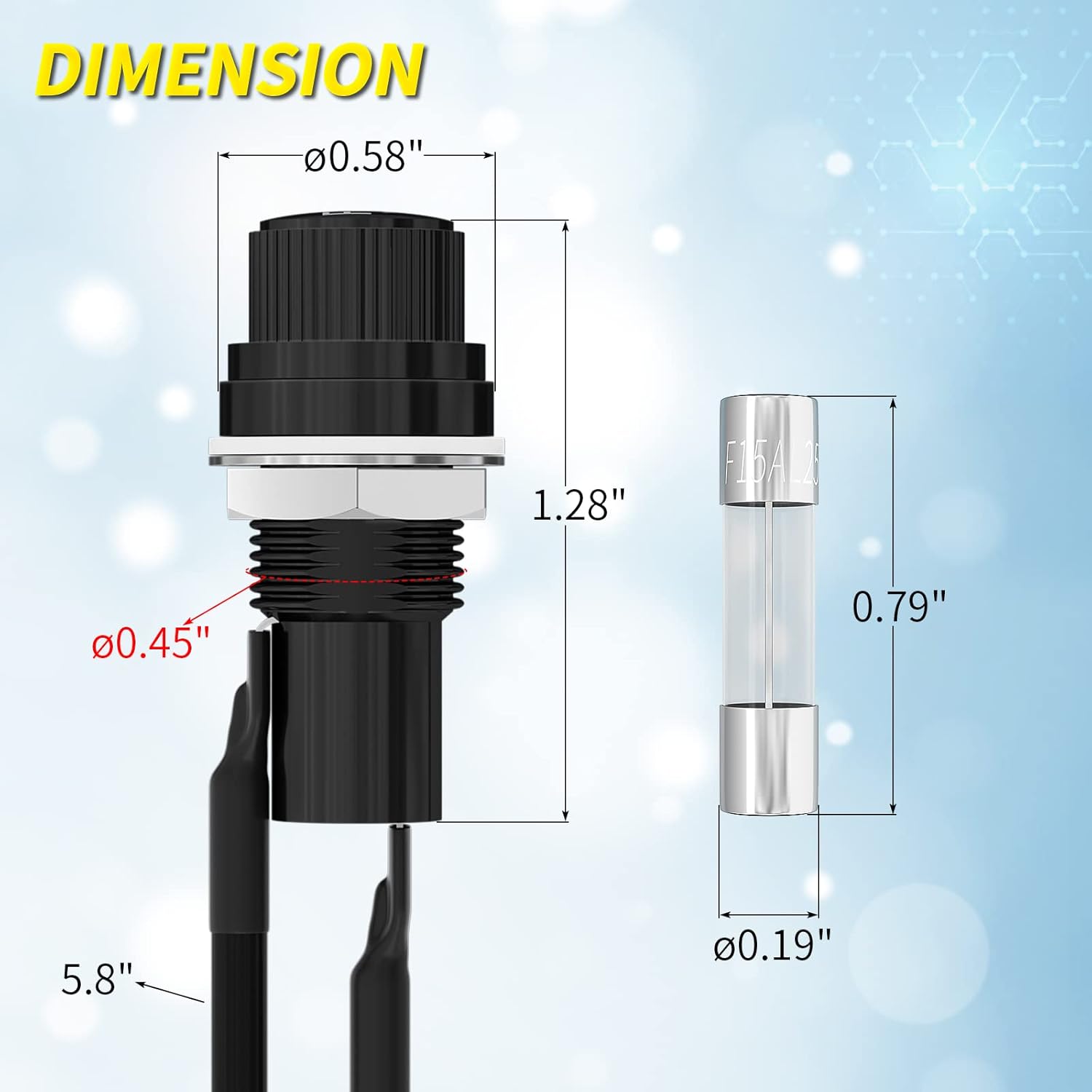

- **Panel Cutout Size:** Approx. 12mm diameter
- **Materials:** Thermoplastic body, copper contacts
- **Weatherproof Rating:** Suitable for marine/automotive use

**Key Features**

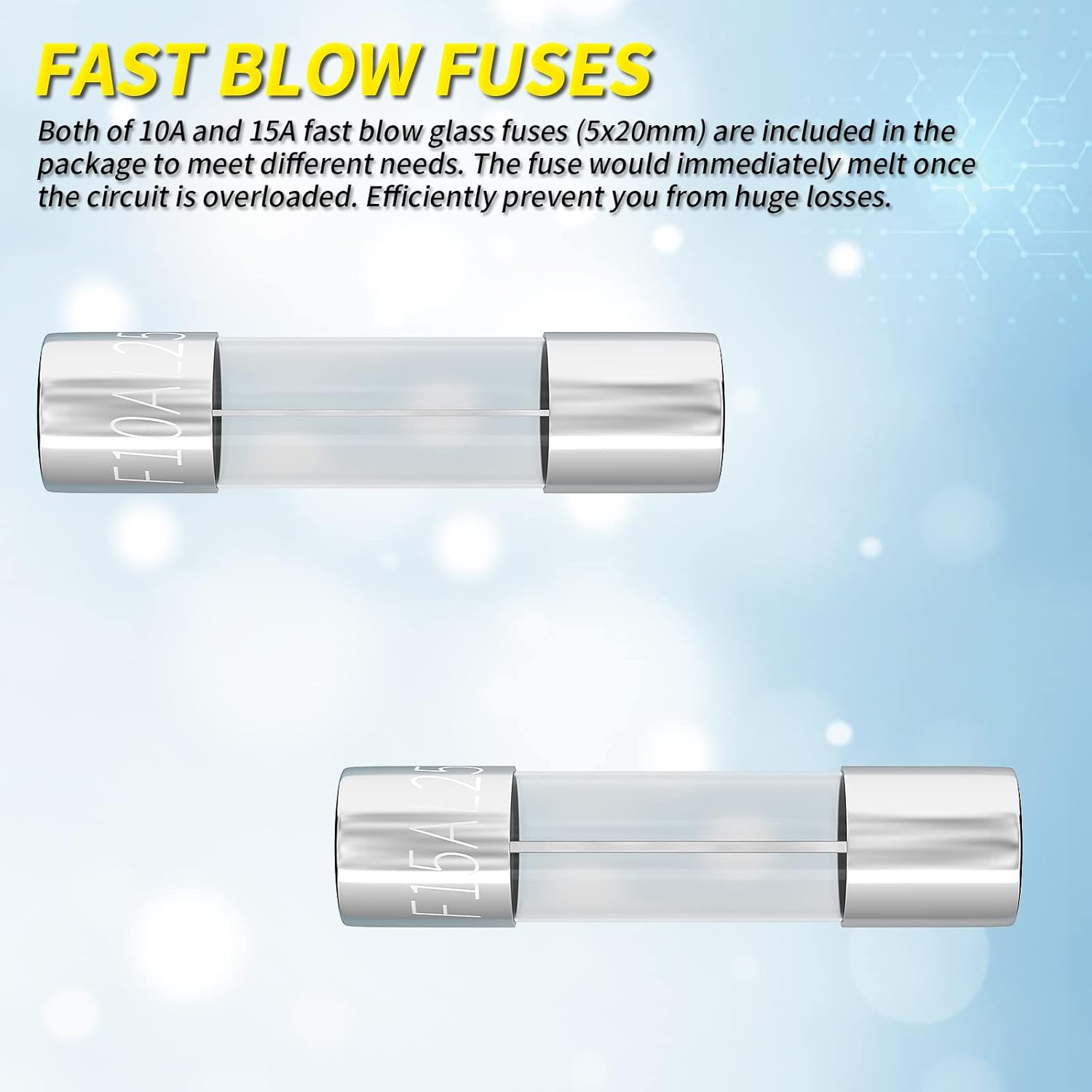

- • Includes both 10A and 15A fast-blow glass fuses
- • Waterproof screw cap protects against moisture
- • Ideal for automotive, marine, and household applications
- • Pre-wired for easy and efficient installation
- • Panel mount design keeps fuse accessible for quick replacement

Keep your circuits safe and easy to maintain with this rugged and flexible panel mount fuse holder setup.
