10A 250V AC Fast-Blow Glass Fuses, 5 × 20 mm, 5-Pack

In stock
UPC: F2398-ND
Regular price $4.99

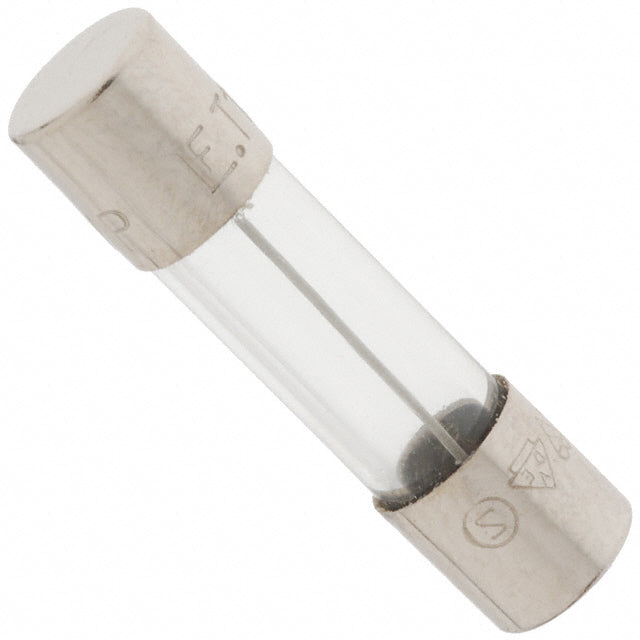

Five fast-blow glass cartridge fuses rated at 10A and 250V AC, in the nominal 5 × 20 mm size. These fuses require a compatible fuse holder.

Specifications

  • Pack quantity: 5 fuses
  • Current rating: 10A
  • Voltage rating: 250V AC
  • Response: Fast-blow
  • Construction: Glass cartridge
  • Nominal size: 5 × 20 mm
  • Listed dimensions: 5.20 mm diameter × 20.00 mm length
  • Mounting: Requires holder
  • Breaking capacity at rated voltage: 100A
  • Melting I²t: 217.635
  • DC cold resistance: 0.0063 Ω
  • Operating temperature: −55°C to +125°C
  • Listed approvals: CE, K-MARK, PSE, VDE

Match the current rating, voltage rating, response type, dimensions, and breaking capacity to your equipment's requirements before replacing a fuse.

Littelfuse 217 series datasheet
