Aluminum Electrolytic Capacitor - Snap In 3300uF 160 Volt

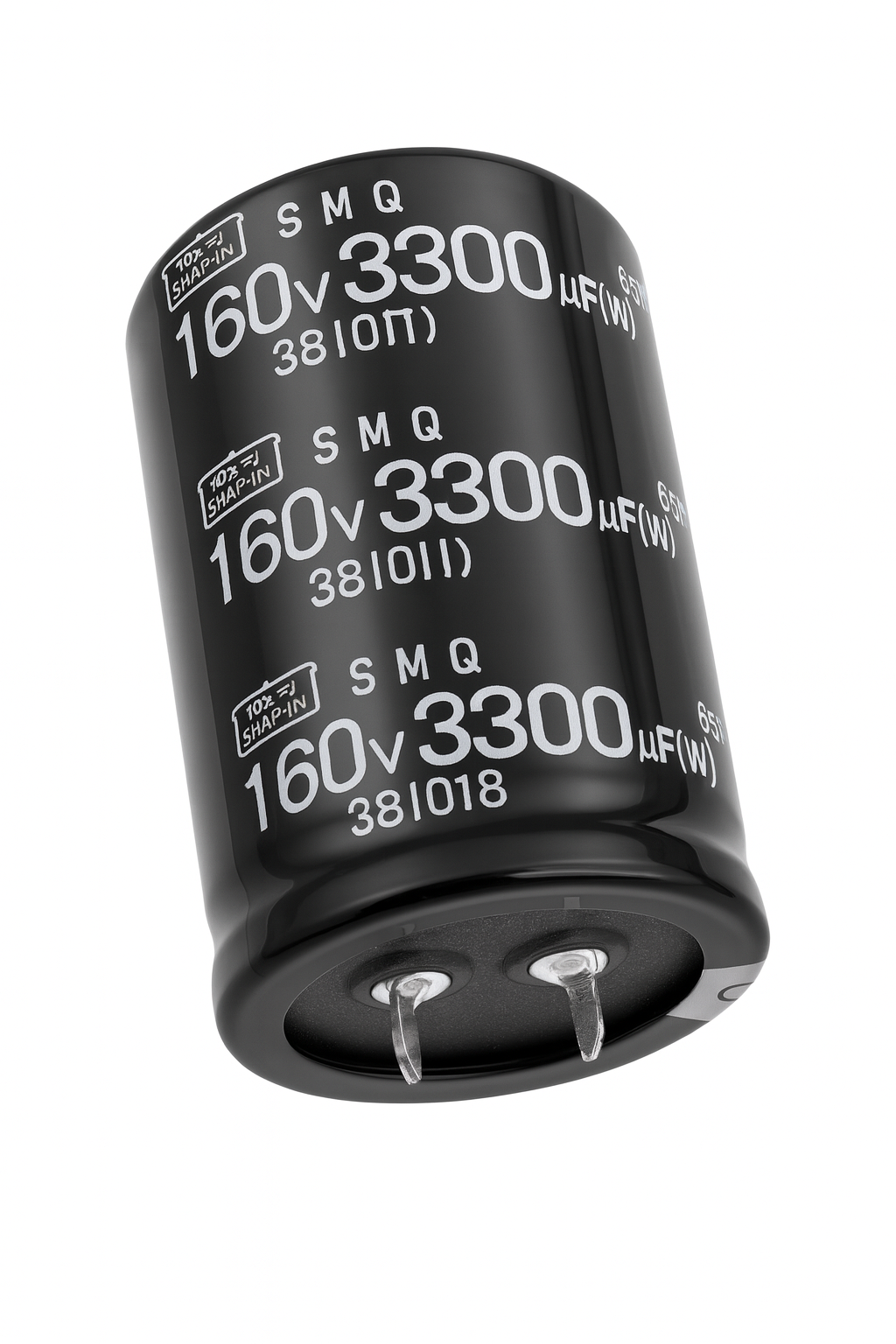

Chemi-Con ESMQ161VSN332MA45S – 3300µF 160V Snap-In Electrolytic Capacitor #ESMQ161VSN332MA45S

Model: ESMQ161VSN332MA45S

PRODUCT DESCRIPTION

High-performance aluminum electrolytic capacitor from Chemi-Con. Designed for reliable operation in power supplies and industrial equipment with snap-in termination for easy PCB mounting.

SPECIFICATIONS

• Capacitance: 3300 µF

• Voltage Rating: 160 VDC

• Tolerance: 20%

• Ripple Current: 5.75 A

• Life Expectancy: 2000 hours

• Operating Temperature: -25°C to +85°C

• Diameter: 35 mm

• Length: 45 mm

• Lead Spacing: 10 mm

• Number of Pins: 2

• Termination Style: Snap-In

• Dissipation Factor (DF): 0.15

• Test Frequency: 120 Hz

• Packaging: Bulk

• Product Type: Large Capacitance Aluminum Electrolytic Capacitor

• Series: SMQ

• Unit Weight: 2.864651 oz

• Manufacturer: Chemi-Con

• RoHS Compliant: Yes

• Factory Pack Quantity: 200

KEY FEATURES

• High capacitance for power filtering

• Snap-in leads for fast PCB mounting

• Rugged and reliable for industrial use

• Compatible with a wide temperature range

• Supports high ripple current loads

-- THIS PRODUCT CONTAINS 1 PER PACK --
