JANDORF 3/8">3/16" Heat Shrink Tube Assorted Colors (5PK) 61771
JANDORF 3/8">3/16" Heat Shrink Tube Assorted Colors (5PK) 61771

Jandorf 61771 Heat Shrink Tubing 3/8" to 3/16", Assorted Colors, 5-Pack

In stock
UPC: 740265617710
(0)
$4.69

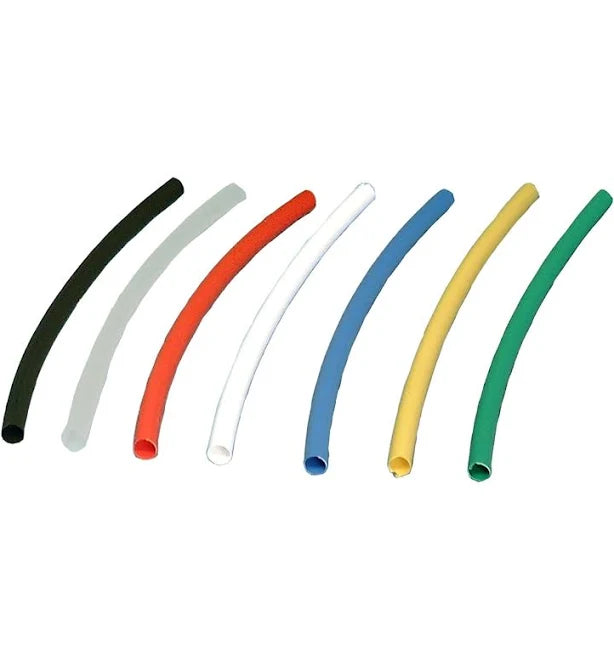

Jandorf 61771 heat shrink tubing insulates and protects medium-diameter electrical connections. This 5-pack comes in assorted colors and features a 2:1 shrink ratio, reducing from a nominal 3/8-inch diameter to a recovered 3/16-inch diameter when heated.

Features & Specifications

  • Brand: Jandorf
  • Part number: 61771
  • Package quantity: 5 pieces
  • Colors: Assorted
  • Nominal diameter before shrinking: 3/8 inch (9.5 mm)
  • Recovered diameter after shrinking: 3/16 inch (4.8 mm)
  • Shrink ratio: 2:1, reducing to 50% of the original diameter
  • Material: Cross-linked polyolefin
  • Recovered wall thickness: Approximately 0.026 inch (0.65 mm)
  • Operating temperature range: -55°C to +135°C
  • Voltage rating: 600 V
  • Flammability rating: UL 224 VW-1
  • Certifications listed: UL Recognized, CSA Certified, RoHS Compliant

Application Notes

Use for insulating and protecting electrical connections where the tubing dimensions suit the application. Confirm the package specifications and follow the manufacturer's heating and installation instructions before use.
