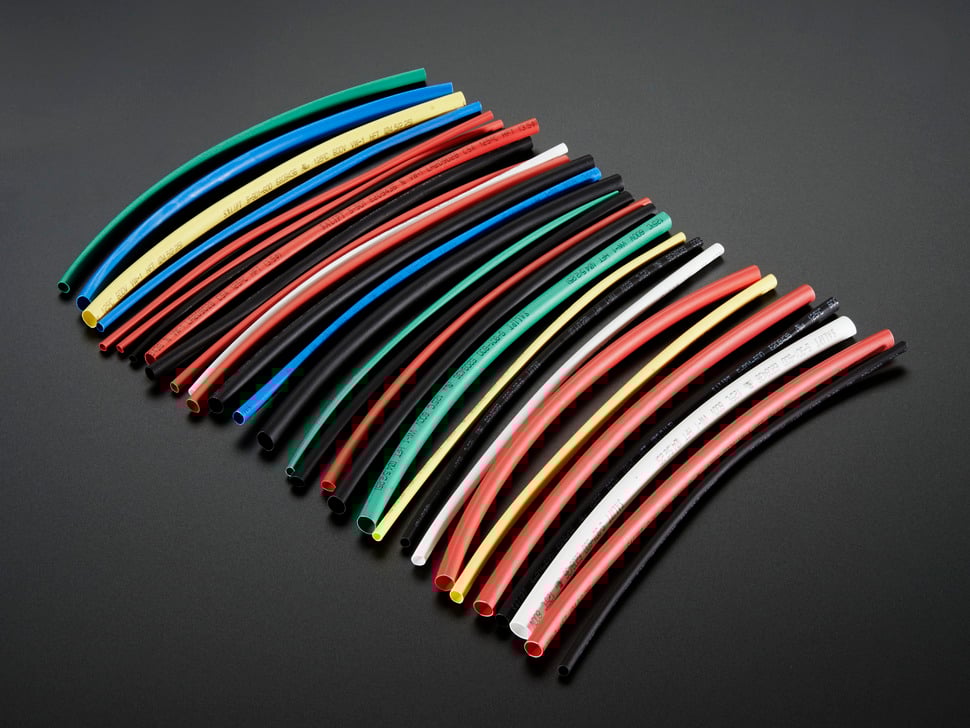

JANDORF 3/16">3/32" Heat Shrink Tube Assorted Colors (10PK) #61769

The JANDORF 61769 heat shrink tubing is designed to shrink from a 3/16" (4.8 mm) diameter to 3/32" (2.4 mm), making it suitable for insulating and protecting small-diameter electrical connections. This tubing features a 2:1 shrink ratio, meaning it reduces to half its original diameter when heated.

🔧 Specifications

• Nominal Diameter (Before Shrinking): 3/16" (4.8 mm)

• Recovered Diameter (After Shrinking): 3/32" (2.4 mm)

• Shrink Ratio: 2:1 (shrinks to 50% of original diameter)

• Material: Cross-linked Polyolefin

• Wall Thickness (Recovered): Approximately 0.026" (0.65 mm)

• Operating Temperature Range: -55°C to +135°C

• Voltage Rating: 600V

• Color: Assorted Colors

• Flammability Rating: UL 224 VW-1

• Certifications: UL Recognized, CSA Certified, RoHS Compliant
