2-in-1 Oscilloscope Multimeter – 10MHz Bandwidth,

-- THIS PRODUCT CONTAINS 1 PER PACK --

This 2-in-1 oscilloscope multimeter combines the full functionality of a 9999-count digital multimeter with a 10MHz bandwidth oscilloscope in a compact, handheld design. The 2.8-inch IPS full-view color screen delivers crisp waveform display and data readout, with support for real-time sampling rates up to 48MSa/s and ±400V input voltage. Featuring auto, normal, and single trigger modes, it's ideal for diagnosing electrical systems quickly and accurately.

The device supports waveform auto acquisition, time base calibration, square wave signal output (3V/1kHz), data storage, USB-C charging and transmission, and multilingual settings. With vertical sensitivity from 200mV/div to 10V/div and horizontal scan ranges from 8ns/div to 20s/div, it adapts to various testing environments—from automotive electronics to industrial diagnostics and low-voltage circuit troubleshooting.

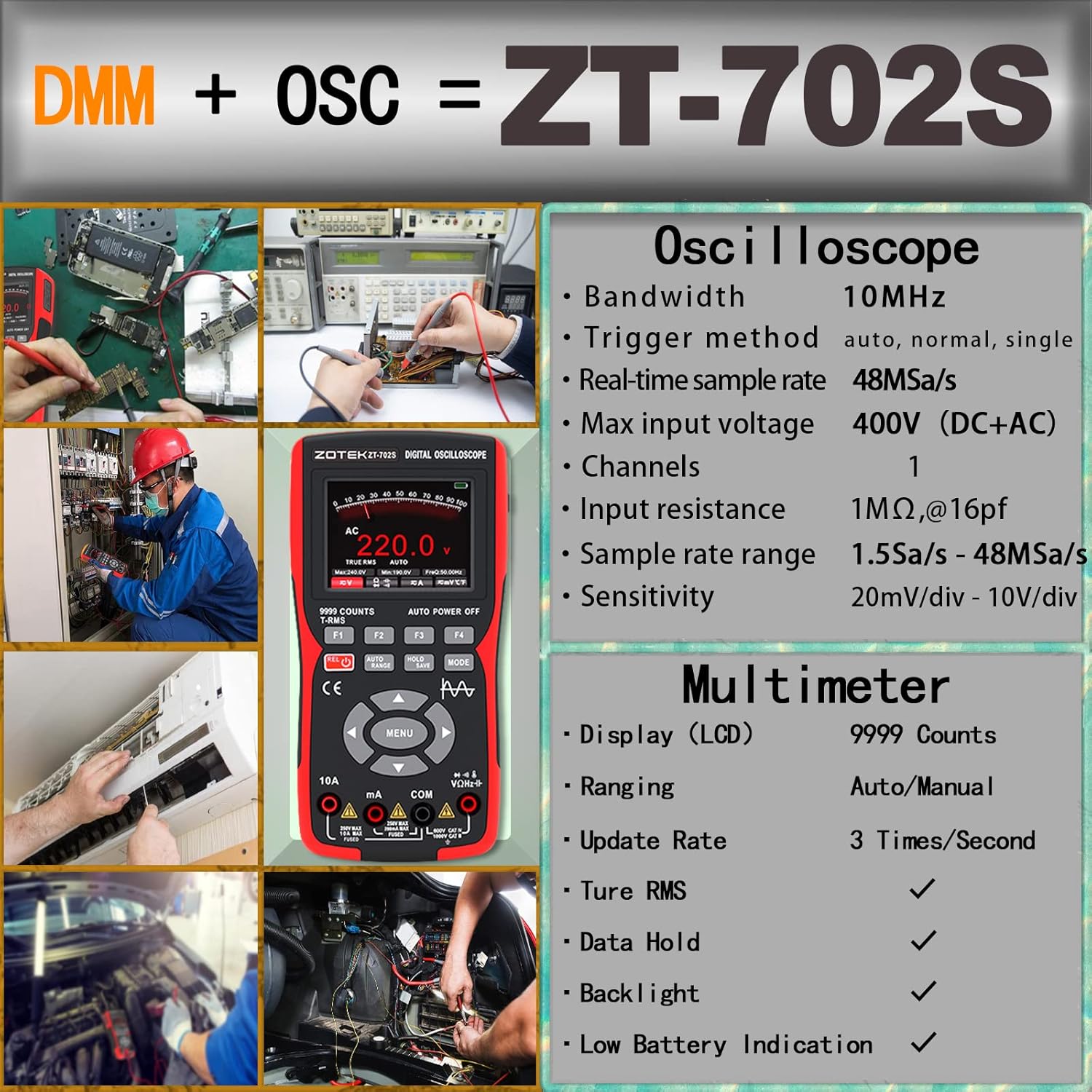

**Oscilloscope Specifications**
- **Display:** 2.8-inch IPS color screen
- **Bandwidth:** 10MHz
- **Sampling Rate:** 48MSa/s
- **Input Voltage:** ±400V
- **Trigger Modes:** Auto / Normal / Single
- **Vertical Sensitivity:** 200mV/div–10V/div
- **Time Base Range:** 8ns/div–20s/div
- **Time Base Accuracy:** 20ppm
- **Signal Generator:** 4V / 1kHz square wave
- **Memory Functions:** Save/load waveform, export data

**Multimeter Specifications**
- **Count:** 9999
- **AC Voltage:** 0–750V
- **DC Voltage:** 0–999.9V
- **AC/DC Current:** 0–9.999A
- **Resistance:** 0–99.99MΩ
- **Capacitance:** 0–9.999mF
- **Frequency:** 0–99.99kHz
- **Temperature:** -20°C to 1000°C
- **Other Tests:** Diode, continuity, socket/switch/low-voltage circuits

**Safety & Build**
- **Safety Standards:** CAT III 1000V / CAT II 600V
- **Certifications:** CE certified

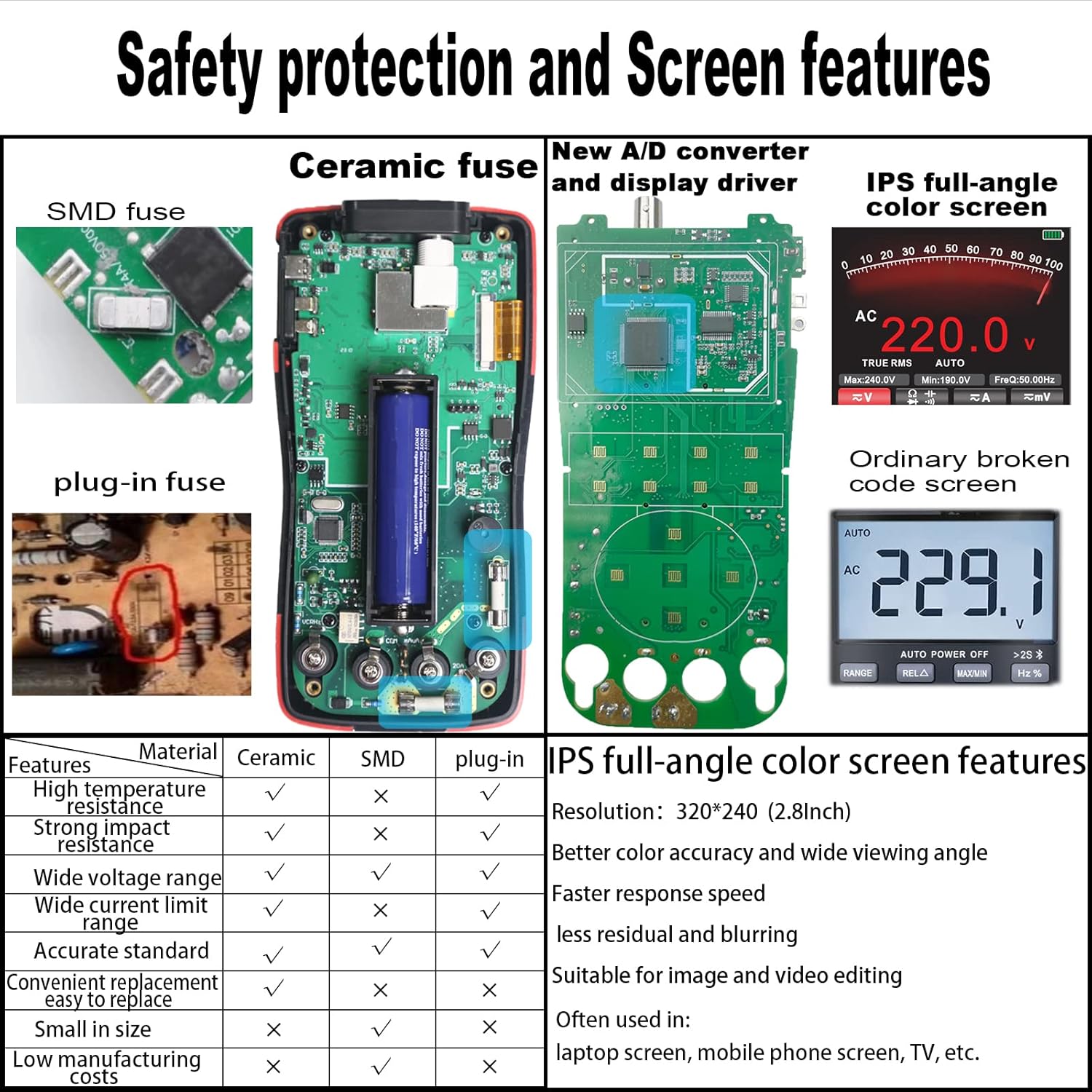

- **Fuses:** 200mA & 10A ceramic fuse protection
- **Material:** ABS + TPE dual-injection case
- **Power Supply:** 2000mAh rechargeable battery

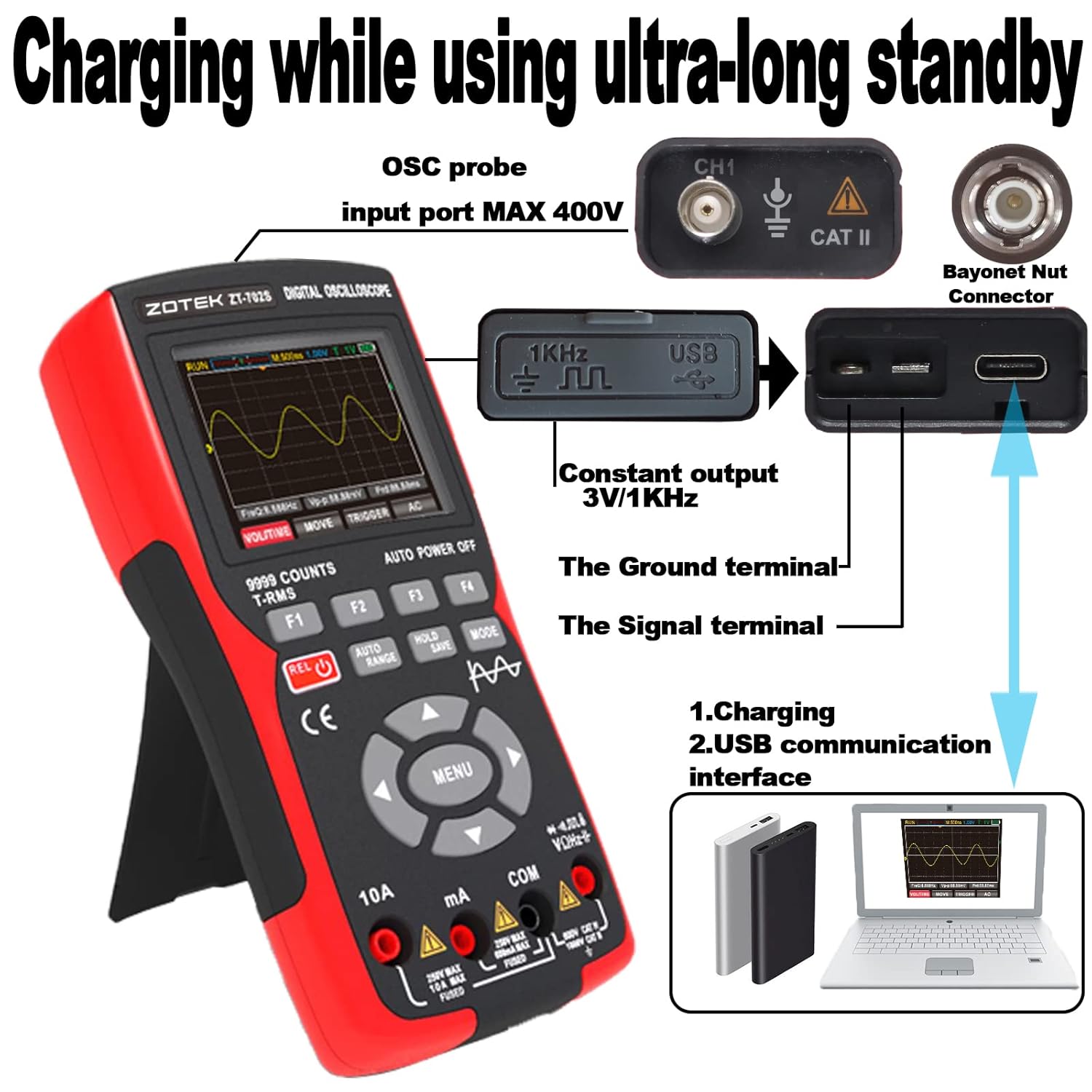

- **Charging Interface:** USB Type-C (charge + data)

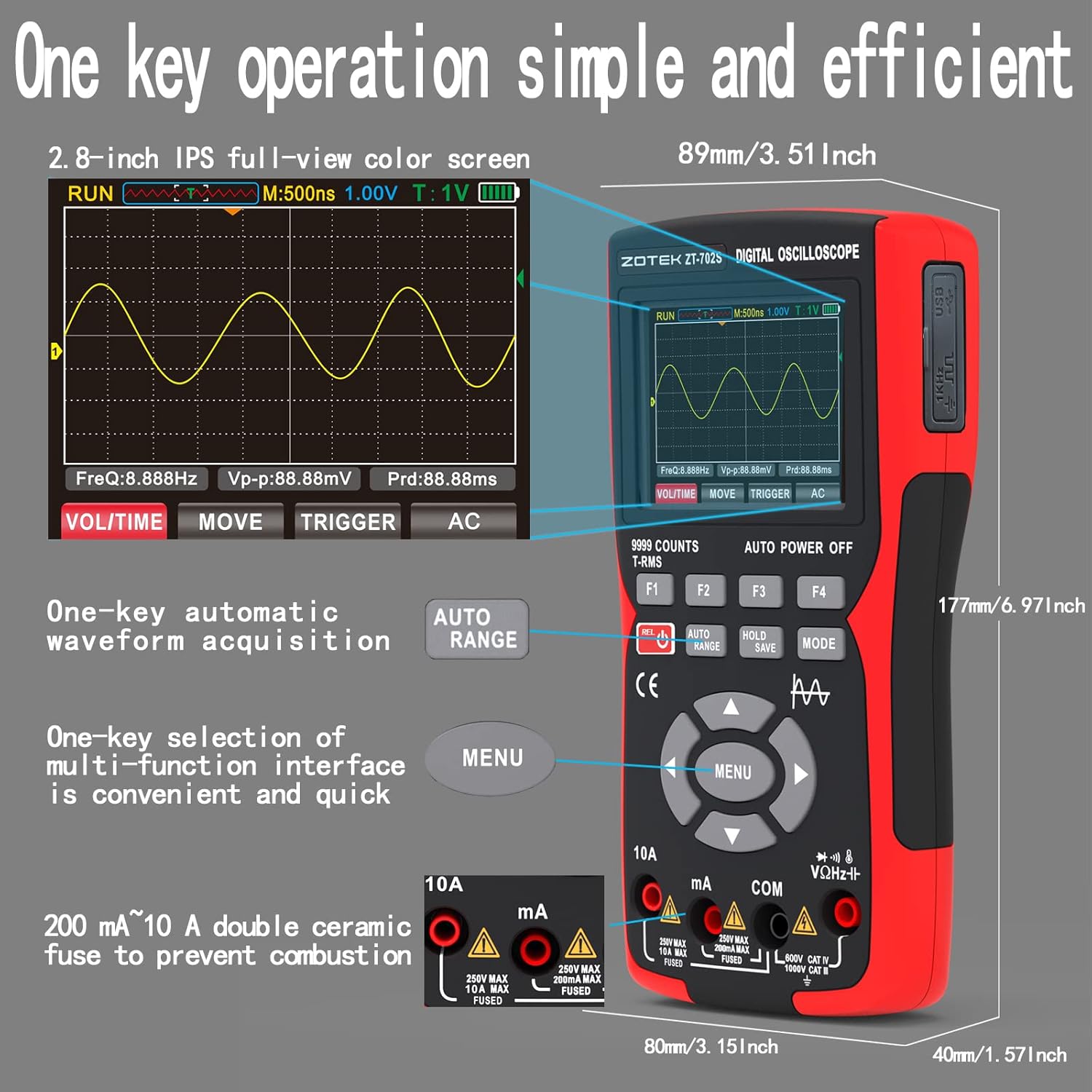

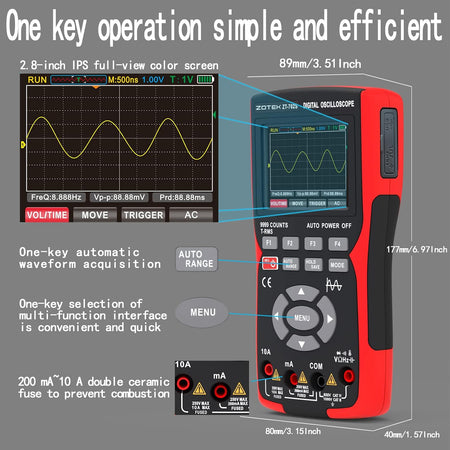

- **Size:** 6.97 × 3.51 × 1.57 inches

**Key Features**
- • Combines oscilloscope & multimeter in one portable tool
- • ±400V input protection and CAT III 1000V safety compliance
- • High-speed 48MSa/s sampling with 10MHz bandwidth
- • Full-color IPS screen with waveform trigger modes
- • Ideal for automotive, industrial, and household circuit diagnostics

Whether you're troubleshooting vehicle systems or diagnosing power electronics, this versatile oscilloscope multimeter delivers performance, safety, and portability.
