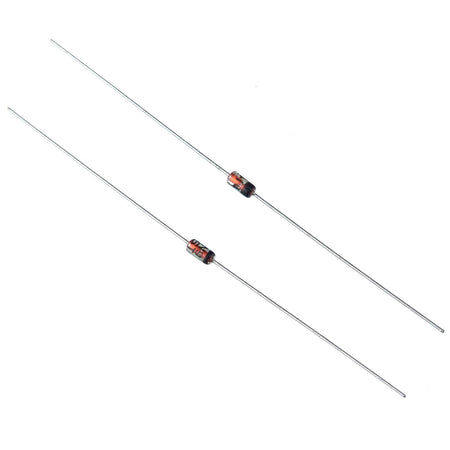

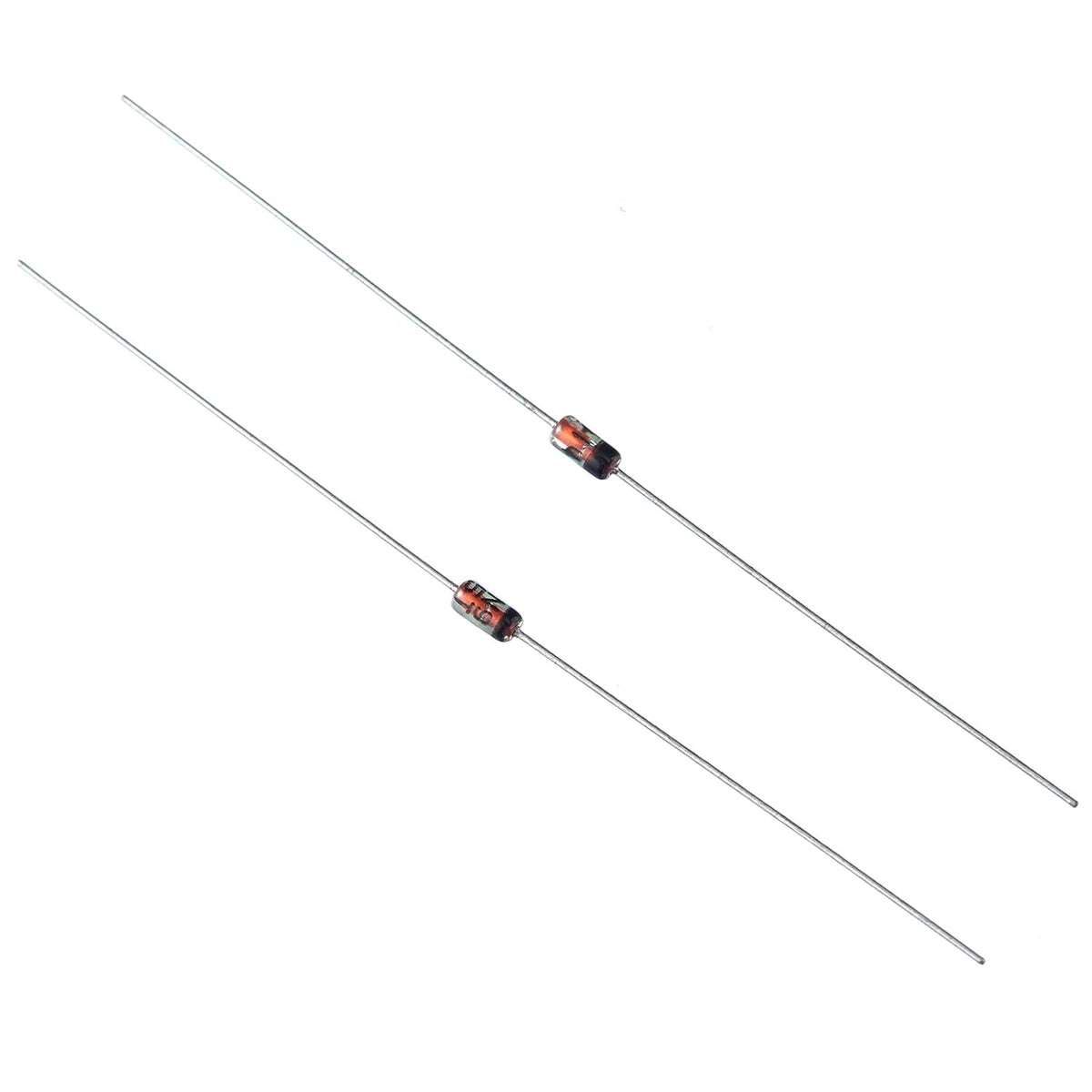

1N914A Standard Signal Diode 100V 200mA DO-35, 2-Pack

1N914A Standard Signal Diode, 100V 200mA, DO-35, 2-Pack

The 1N914A is a general-purpose small signal diode ideal for switching and signal applications in electronic circuits.

Specifications

• Part number: 1N914A
• Technology: Standard
• Voltage - DC reverse (Vr), max: 100V
• Current - average rectified (Io): 200mA
• Voltage - forward (Vf), max @ If: 1V @ 20mA
• Speed: Small signal, ≤200mA (Io), any speed
• Reverse recovery time (trr): 4ns
• Current - reverse leakage @ Vr: 5µA @ 75V
• Capacitance @ Vr, F: 4pF @ 0V, 1MHz
• Mounting type: Through hole
• Package / case: DO-204AH, DO-35, axial
• Operating temperature - junction: -55°C ~ 175°C
• Quantity: 2 diodes per pack

Ideal for switching circuits, signal clamping, and small-signal rectification where fast recovery and low capacitance are needed.
