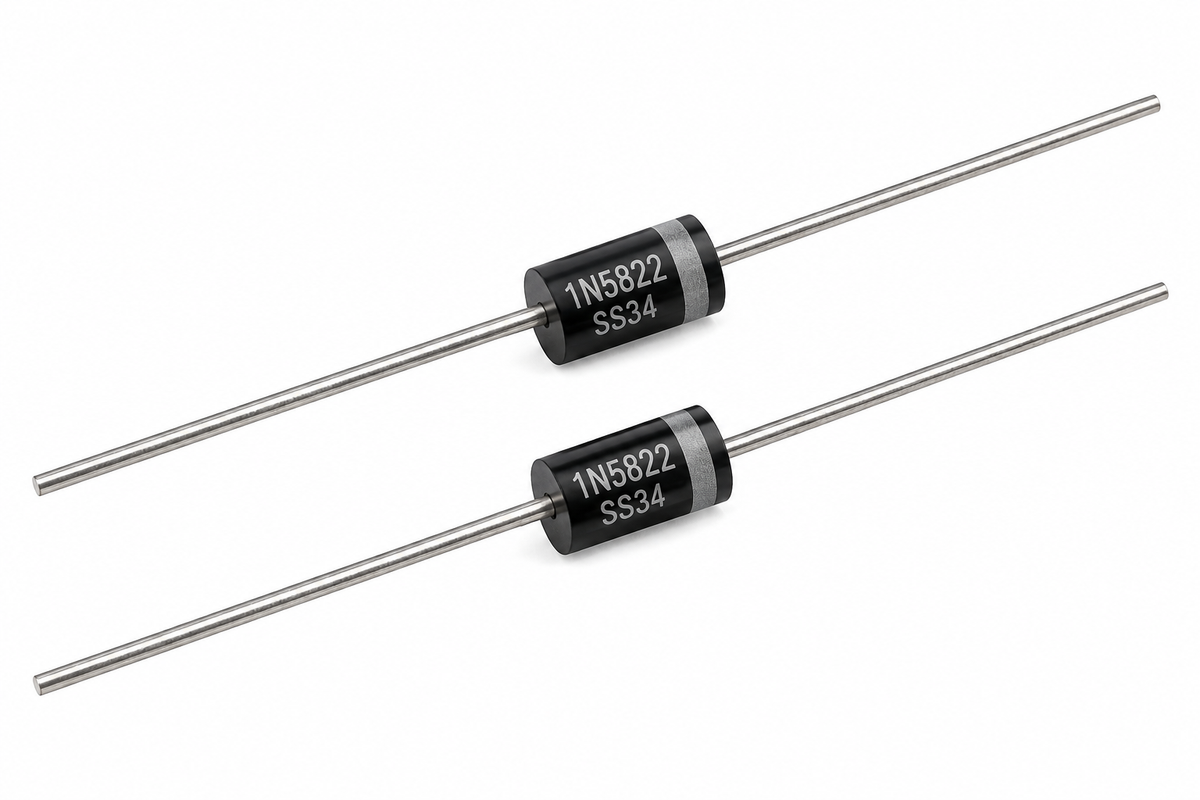

1N5822 Schottky Rectifier Diode – 3A 40V DO-201AD (2-Pack)
Regular price
$1.99
The BOJACK 1N5822 Schottky barrier rectifier diode provides low forward voltage drop and fast switching for power rectification. Rated for 3A average forward rectified current and 40V maximum repetitive reverse voltage, it is suitable for power supplies, DC-DC converters, electronic repairs, and DIY projects.
Its DO-201AD axial-lead package supports through-hole mounting. Each pack includes two 1N5822 diodes.
Key Features
- Schottky barrier design with low forward voltage drop
- 3A average forward rectified current
- 40V maximum repetitive reverse voltage
- Fast switching with minimal reverse recovery delay
- DO-201AD axial-lead package for through-hole mounting
- Cathode marked with a band
Technical Specifications
- Brand: BOJACK
- Part number: 1N5822
- Diode type: Schottky barrier rectifier
- Maximum repetitive reverse voltage: 40V
- Average forward rectified current: 3A
- Peak surge current: 80A (8.3ms half-sine, typical datasheet rating)
- Forward voltage: Up to approximately 0.525V at 3A, depending on manufacturer
- Package: DO-201AD
- Mounting type: Through-hole
- Lead configuration: Axial
- Polarity: Cathode identified by band
- Quantity: 2 diodes
Common Applications
- Switching power supplies
- DC-DC converters
- Reverse polarity protection
- Low-voltage rectification
- Electronic equipment repairs
- Hobby electronics and DIY projects
Package includes: 2 × 1N5822 Schottky rectifier diodes.
