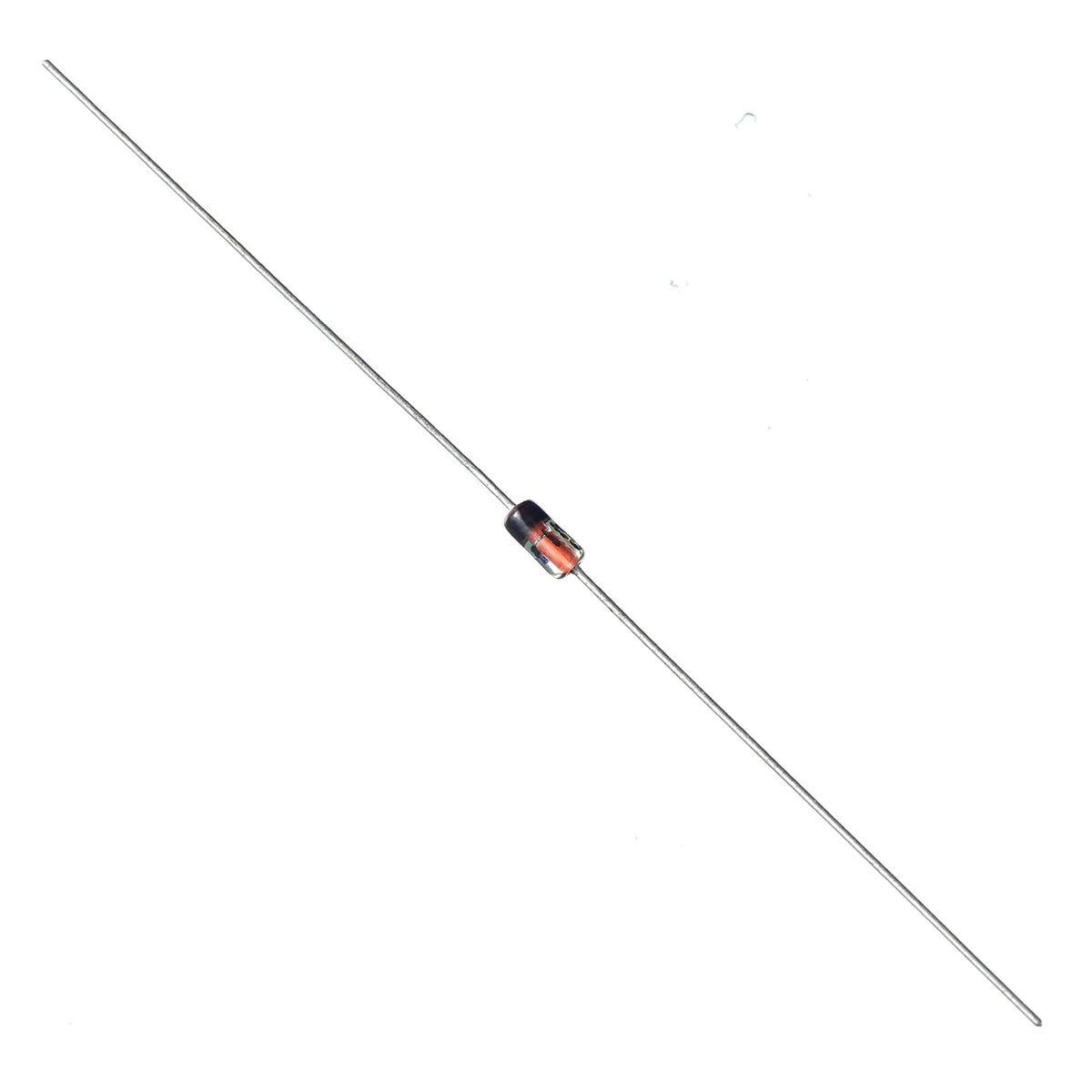

1N4747A Zener Diode 20V 1W DO-41

1N4747A Zener Diode, 20V 1W, DO-41

The 1N4747A is a general-purpose zener diode ideal for voltage regulation and reference applications. Sold individually.

Specifications

• Part number: 1N4747A
• Voltage - zener (nom), Vz: 20V
• Tolerance: ±5%
• Power, max: 1W
• Impedance, max (Zzt): 22 Ohms
• Current - reverse leakage @ Vr: 5µA @ 15.2V
• Operating temperature: -65°C ~ 200°C
• Mounting type: Through hole
• Quantity: 1 diode per pack

Ideal for voltage regulation, surge protection, and reference voltage applications in power supplies and electronic circuits.
