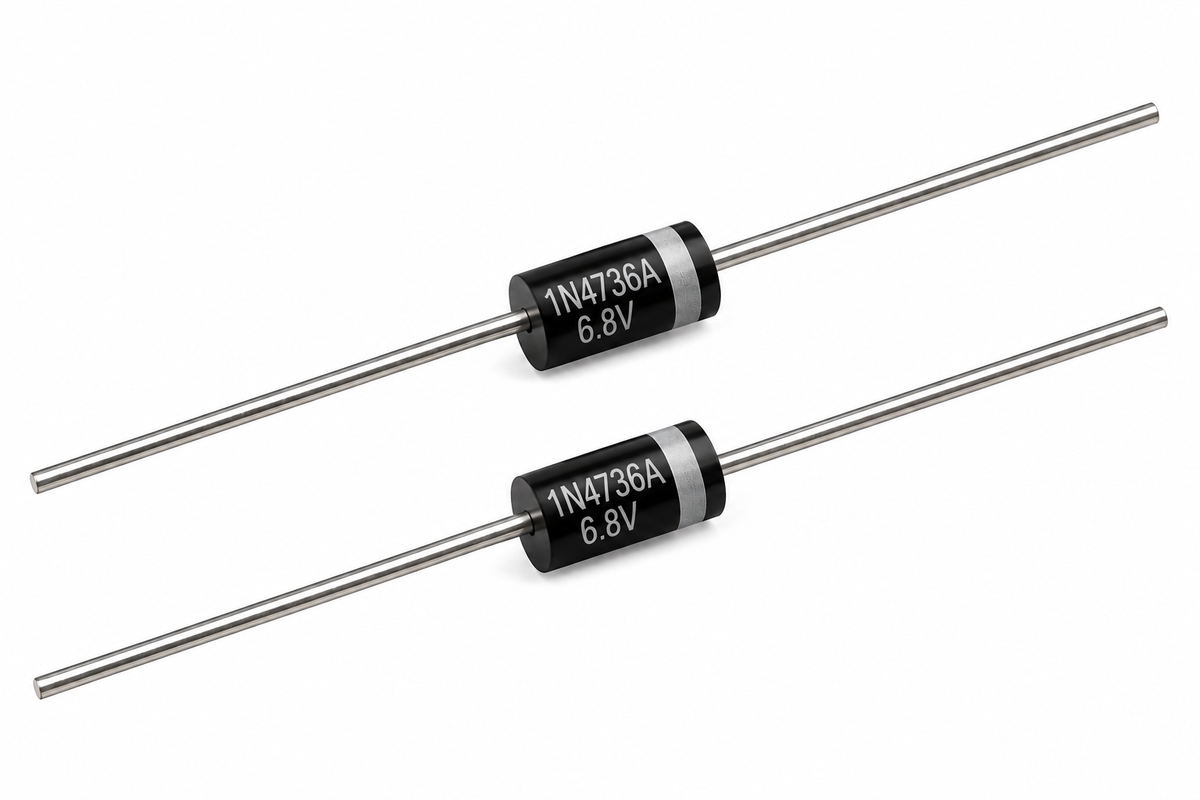

1N4736A Zener Diode – 6.8V 1W ±5% DO-41 (2-Pack)

The 1N4736A is a 6.8V silicon Zener diode for voltage regulation, voltage reference, and circuit protection. Rated for 1W maximum power dissipation under specified conditions and ±5% Zener voltage tolerance, it is suitable for electronic repairs, power supply circuits, prototyping, and DIY projects.

Its DO-41 axial-lead package supports through-hole mounting. Each pack contains two diodes.

Key Features

• 6.8V nominal Zener voltage
• 1W maximum power dissipation under specified conditions
• ±5% Zener voltage tolerance
• Voltage regulation and reference applications
• DO-41 axial-lead package for through-hole mounting
• Cathode identified by a band

Technical Specifications

• Part number: 1N4736A
• Diode type: Silicon Zener
• Nominal Zener voltage: 6.8V
• Voltage tolerance: ±5%
• Maximum power dissipation: 1W under specified conditions
• Zener test current: 37mA
• Maximum Zener impedance: 3.5Ω at test current
• Package: DO-41 (DO-204AL)
• Mounting type: Through-hole
• Lead configuration: Axial
• Polarity: Cathode marked with a band
• Quantity: 2 diodes

Common Applications

• Voltage regulation
• Voltage reference circuits
• Power supply stabilization
• Voltage limiting and protection
• Electronic equipment repairs
• DIY electronics projects

Package includes: 2 × 1N4736A Zener diodes.
