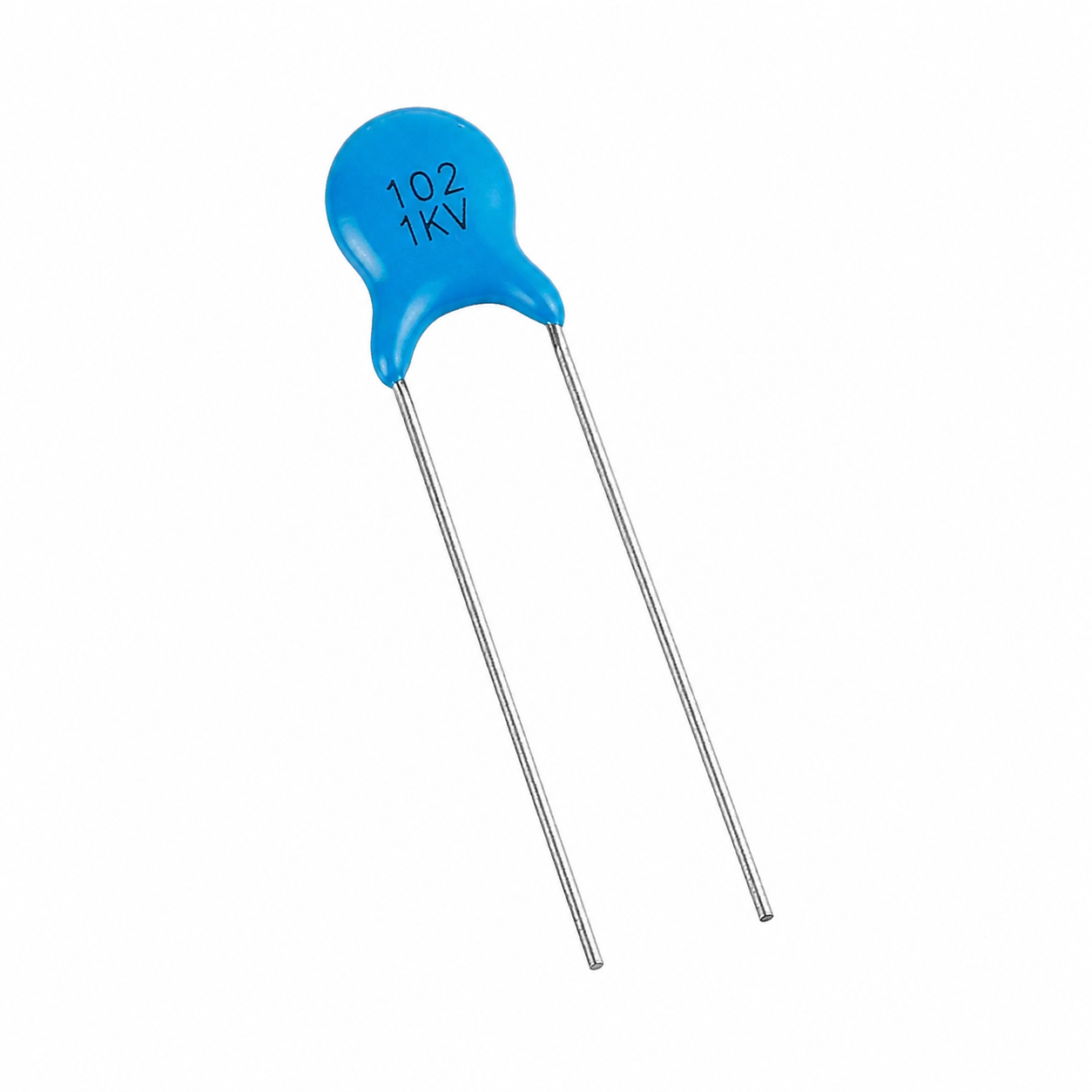

1kV High Voltage DIP Ceramic Capacitor — 100pF to 10nF
Reliable high-voltage ceramic capacitors designed for applications requiring compact size, stable capacitance, and high dielectric strength. Available in multiple capacitance values from 100pF to 10nF (0.01µF) with a 1kV rated voltage.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | High Voltage Ceramic Capacitor |
| Mounting Type | Through-Hole / Radial DIP |
| Rated Voltage | 1kV DC |
| Capacitance Range | 100pF – 10nF |
| Capacitance Options | Multiple variants available |
| Dielectric | Ceramic |
| Lead Type | Radial Leads |
| Application | High-voltage filtering, coupling, bypass, snubber and general electronic circuits |

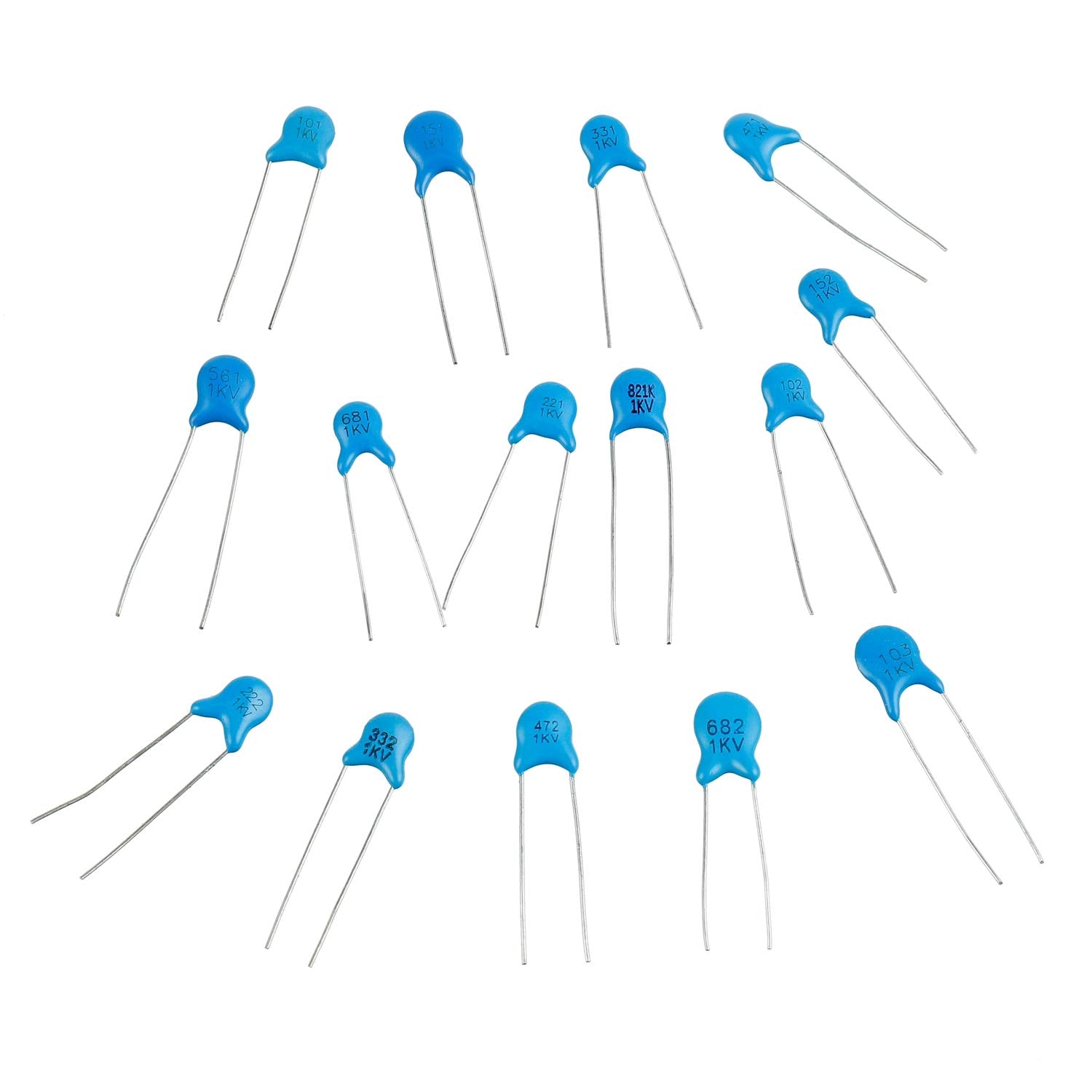

Available Variants
Select the required capacitance value when ordering.
100pF • 220pF • 330pF • 470pF • 1nF • 2.2nF • 3.3nF • 4.7nF • 10nF
Variant availability can be adjusted to match the actual stocked values.
Features
- 1,000V high-voltage rating
- Wide capacitance selection from 100pF to 10nF
- Compact through-hole construction
- Suitable for PCB mounting
- Ceramic dielectric construction
- Useful for high-voltage filtering and noise suppression
- Convenient for prototyping, repair, maintenance and production applications
Typical Applications
Power supplies, high-voltage circuits, switching circuits, filtering, bypass/decoupling, coupling, snubber networks, voltage multipliers, electronic equipment repair and general-purpose PCB projects.
Package Includes
1 × 1kV High Voltage DIP Ceramic Capacitor in the capacitance value selected.
Note: Please select the required capacitance variant before ordering. Physical dimensions, lead spacing, tolerance and other characteristics may vary between capacitance values. Verify the selected component's specifications for applications where these parameters are critical.
