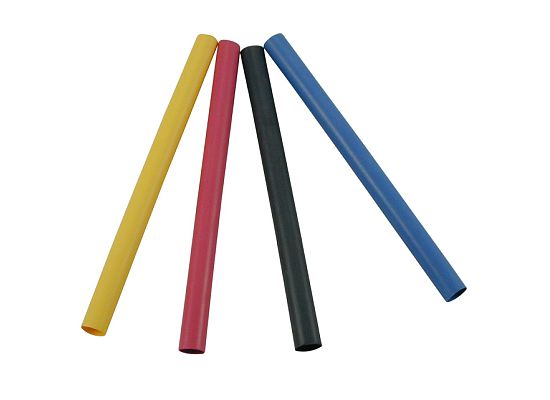

JANDORF 1/8">1/16" Heat Shrink Tube Assorted Colors (10PK) 61768

The JANDORF 61768 heat shrink tubing is designed to shrink from a 1/8" (3.2 mm) diameter to 1/16" (1.6 mm), making it suitable for insulating and protecting small-diameter electrical connections. This tubing features a 2:1 shrink ratio, meaning it reduces to half its original diameter when heated.

🔧 Specifications

• Nominal Diameter (Before Shrinking): 1/8" (3.2 mm)

• Recovered Diameter (After Shrinking): 1/16" (1.6 mm)

• Shrink Ratio: 2:1 (shrinks to 50% of original diameter)

• Material: Cross-linked Polyolefin

• Wall Thickness (Recovered): Approximately 0.013" (0.33 mm)

• Operating Temperature Range: -55°C to +135°C

• Voltage Rating: 600V

• Color: Assorted Colors

• Flammability Rating: UL 224 VW-1

• Certifications: UL Recognized, CSA Certified, RoHS Compliant

• Length per Tube: 4 inches (101.6 mm)
