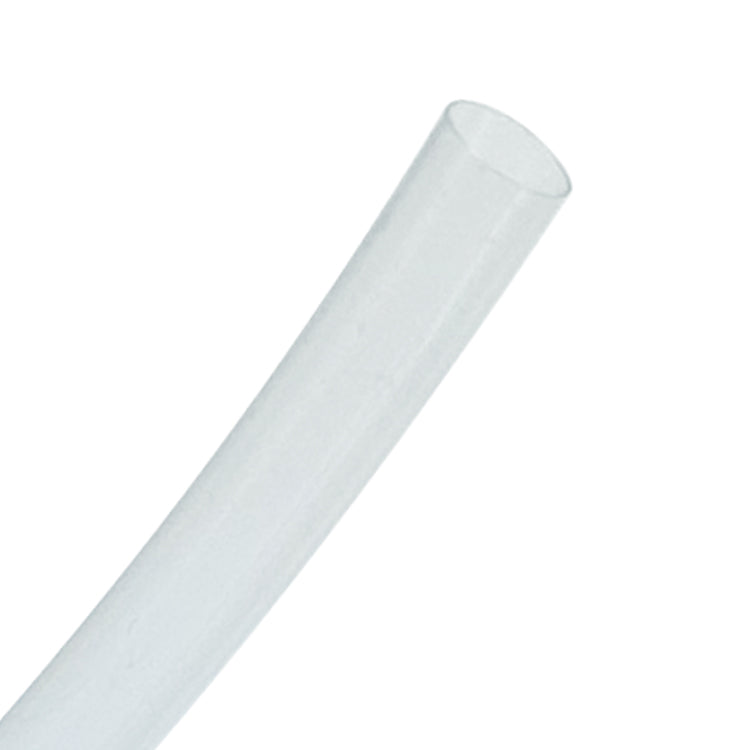

JANDORF 1/2">1/4" Heat Shrink Tube Clear (3pk) #61778

The JANDORF 61778 heat shrink tubing is designed to shrink from a 1/2" (12.7 mm) diameter to 1/4" (6.4 mm), making it suitable for insulating and protecting medium-diameter electrical connections. This tubing features a 2:1 shrink ratio, meaning it reduces to half its original diameter when heated.

🔧 Specifications

• Nominal Diameter (Before Shrinking): 1/2" (12.7 mm)

• Recovered Diameter (After Shrinking): 1/4" (6.4 mm)

• Shrink Ratio: 2:1 (shrinks to 50% of original diameter)

• Material: Cross-linked Polyolefin

• Wall Thickness (Recovered): Approximately 0.026" (0.65 mm)

• Operating Temperature Range: -55°C to +135°C

• Voltage Rating: 600V

• Color: Clear

• Flammability Rating: UL 224 VW-1

• Certifications: UL Recognized, CSA Certified, RoHS Compliant
