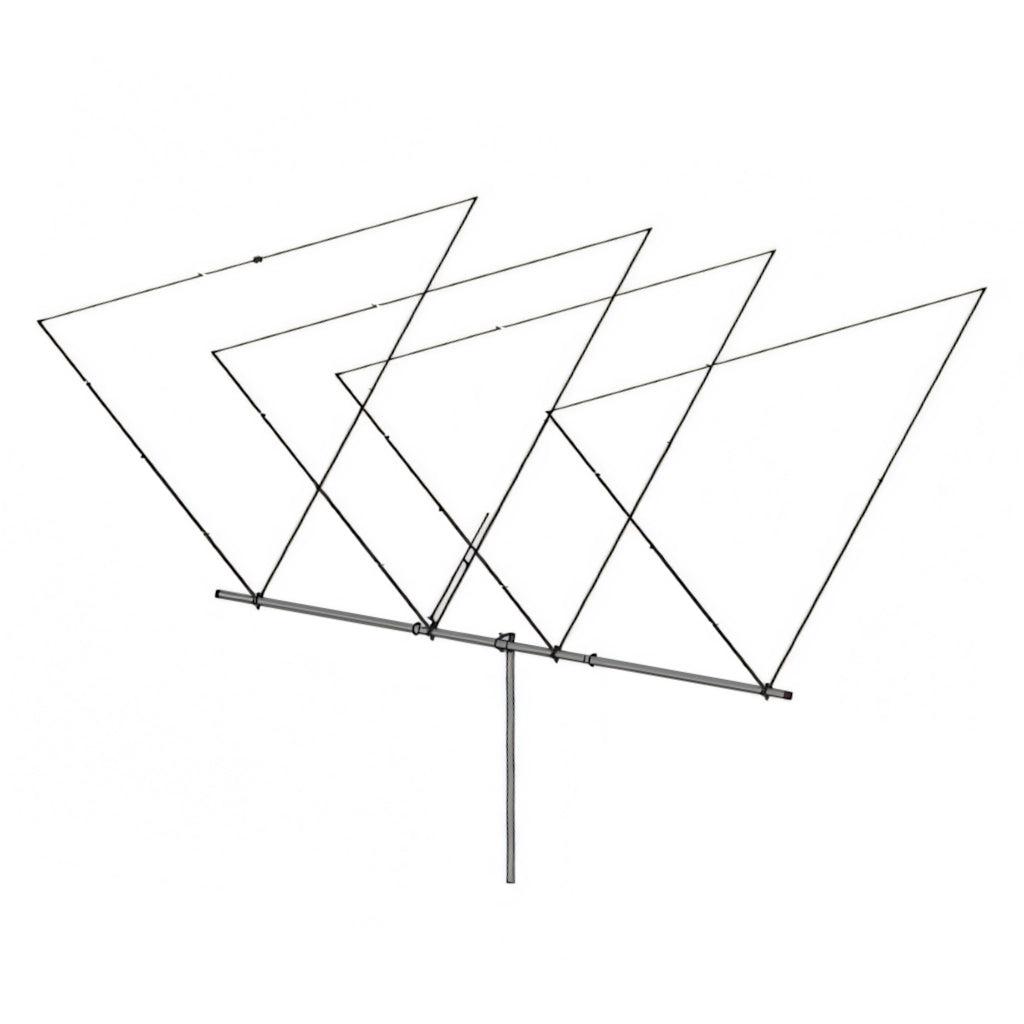

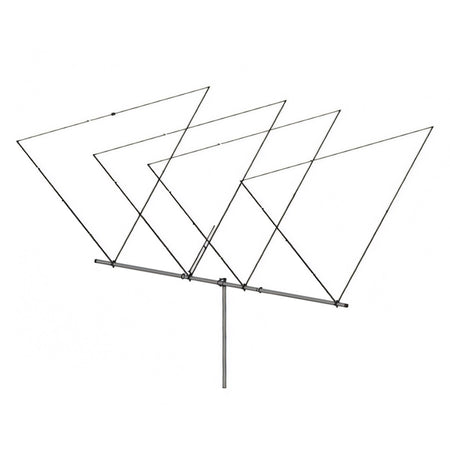

Maco VQ4 4 Element V-Quad Base Antenna for CB & 10M Radios

Maco introduces the much-anticipated VQ4 V-Quad® Antenna. The VQ4 has been designed and rigorously tested by the Maco Engineering Department to ensure maximum efficiency.

The VQ4 is a full wave antenna that is great for DXing. It is a directional beam that can be used on the horizontal and vertical polarization with one feed line. It is tunable for 10 or 11 meters.

FULL WAVE DIRECTIONAL BEAM

BOOM LENGTH: 17'
BOOM OD: 2"
WEIGHT: 26 LBS
NUMBER OF ELEMENTS: 4
TURN RADIUS: 16.5'
WIND LOAD: 8.7 SQ FT

GAIN: 15.81 dB
POWER MULTIPLICATION: 39.5X
FRONT TO BACK SEPARATION: 23 dB
TUNING: 10/11 METERS
