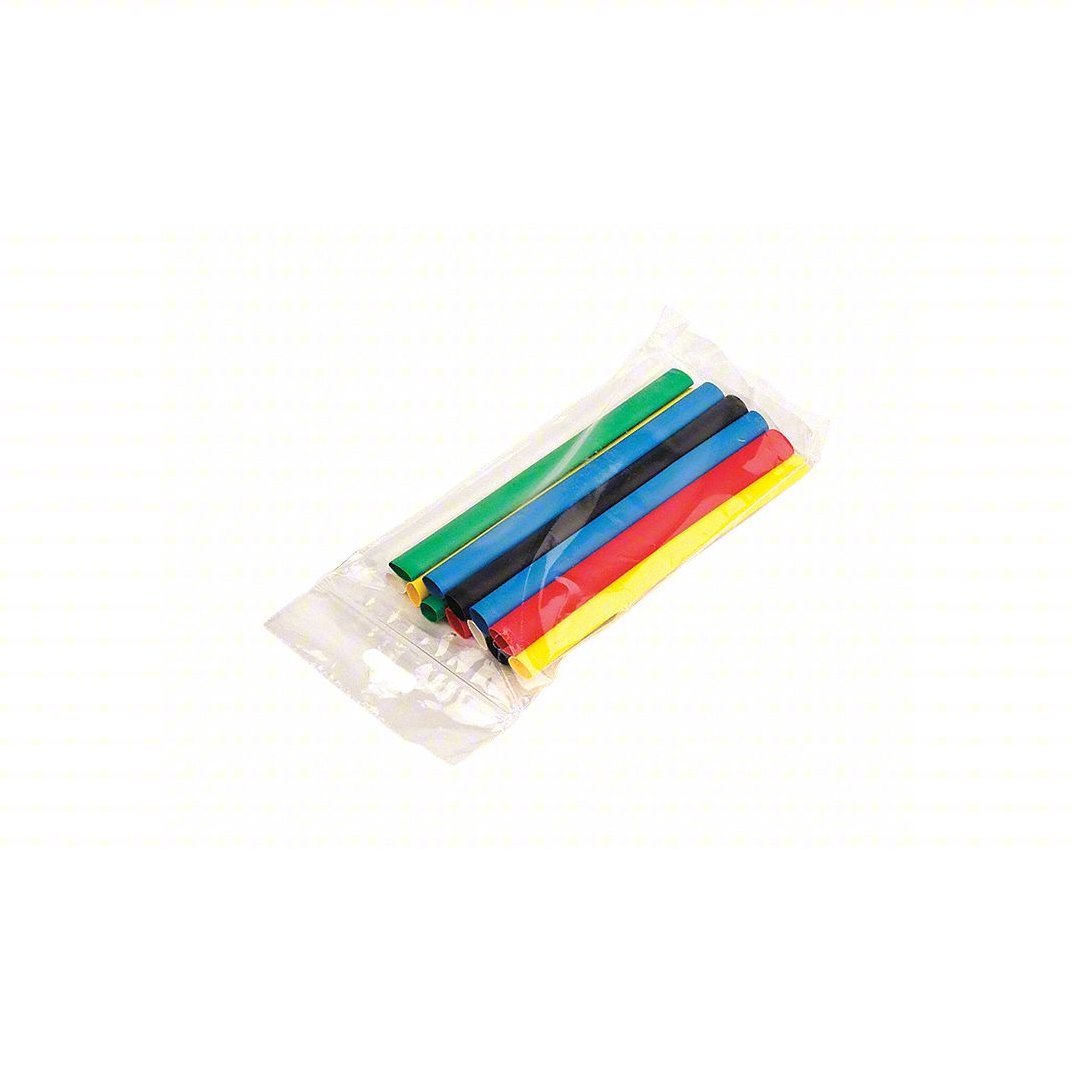

JANDORF 3/32">3/64" Heat Shrink Tube Assorted Colors (10 PK) 61767

The Jandorf 61767 heat shrink tubing is designed to insulate and protect small-diameter electrical connections, particularly in applications requiring a snug fit over fine wires or terminals.

🔧 Technical Specifications

• Nominal Diameter (Supplied): 3/32" (2.4 mm)

• Recovered Diameter: 3/64" (1.2 mm)

• Shrink Ratio: 2:1

• Wall Thickness (Recovered): Approximately 0.019" (0.48 mm)

• Material: Polyolefin (cross-linked)

• Flammability Rating: UL 224 VW-1 (except clear)

• Operating Temperature Range: -55°C to +135°C

• Voltage Rating: 600V

• Color: Typically black

• Length: Varies by package

• Certifications: UL and CSA listed
