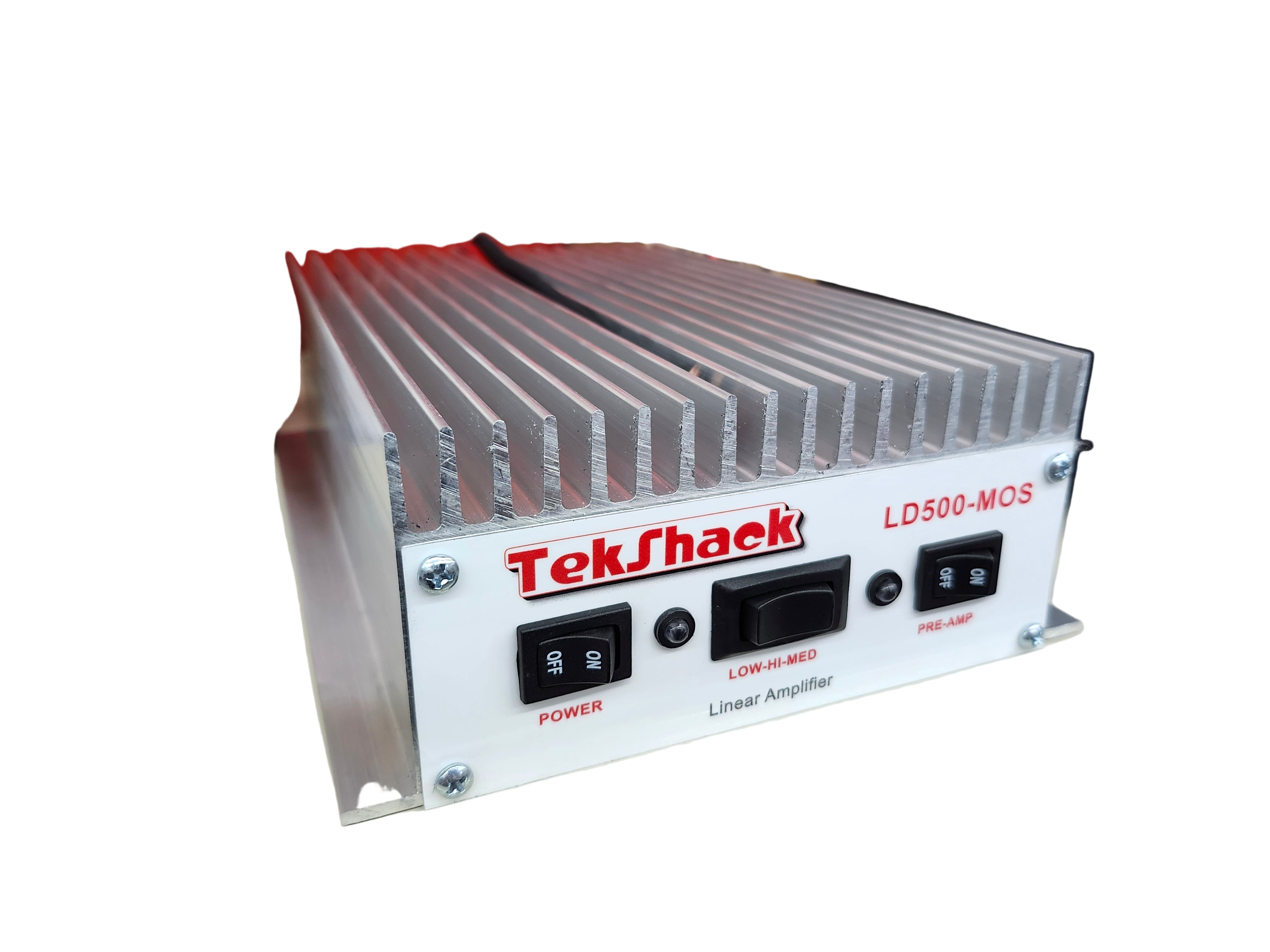

TekShack LD500-MOS Linear Amplifier

Built in the USA by Rocketbox, the TekShack LD500-MOS is a rugged low drive CW transmitter engineered for high-efficiency RF transmission across 26–30 MHz. This 500-watt amplifier is designed for export, industrial, and scientific applications, offering stable performance with selectable power levels and a built-in preamp.

The LD500-MOS is compatible with AM, FM, SSB, and CW modes, and operates on a 12–14.5V DC power supply with a 50A current draw. The unit requires a dead key input of 2–4 watts and allows a maximum PEP swing input of 15 watts. A well-tuned antenna with an SWR of 1.5 or less is mandatory for safe and effective operation.

Specifications
- **Frequency Range:** 26–30 MHz
- **Power Supply:** 12–14.5 VDC (Do not exceed 14.2V)
- **Current Draw:** 50 Amps
- **Input Power:**
  - Dead Key: 2–4 watts
  - Max PEP Swing: 15 watts
  - Max SSB Input: 20 watts
- **Output Power:** Rated for 500 watts
- **Operating Modes:** AM, FM, SSB, CW
- **SWR Requirement:** 1.1 to 1.5 or less
- **Connections:** Red = Hot, Black = Ground
- **Warranty:** 2-Year Manufacturer Warranty (Transistors not included)

Key Features
- • 500W low drive transmitter for serious RF applications
- • Includes built-in preamp and 3 selectable power settings
- • Supports multiple modes including SSB, CW, AM, and FM
- • Durable, precision-built
- • Final-sale only with manufacturer-direct warranty support

**Important Use Restrictions:**
- For industrial, scientific, medical, or export use only
- Not legal for use on CB or Amateur bands in the U.S.
- All sales are **final** – no returns or exchanges
- Use a proper SWR meter and tune the antenna before operation
- DO NOT exceed 14.2V supply voltage
- Always modulate the transmitter to full power before adjusting SWR

The LD500-MOS delivers the performance, build quality, and control flexibility required by professionals needing clean, stable high-output RF transmission.
