TRIMMER 100K OHM 0.5W PC PIN TOP

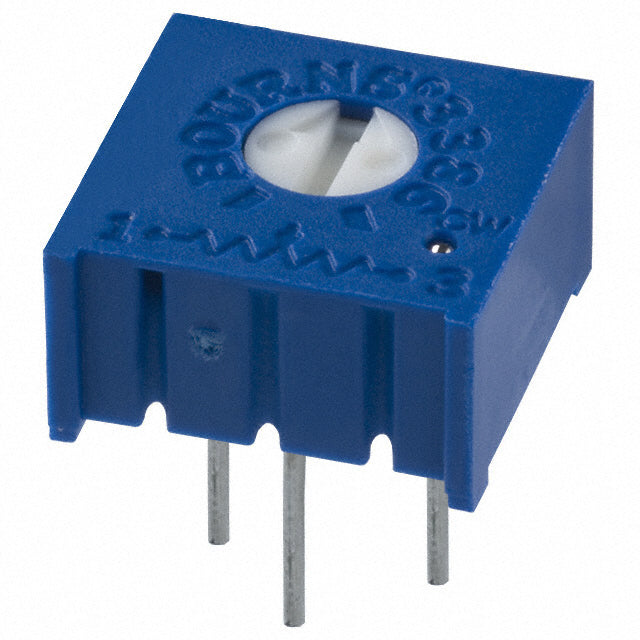

100K Ohm Trimmer Potentiometer – 0.5W PC Pin Top Adjust

The 100K Ohm 0.5W Trimmer Potentiometer is a precision variable resistor designed for fine-tuning voltage, signal levels, and circuit behavior. Its compact top-adjust design allows for easy access during calibration, while the PC pin through-hole mount ensures stable installation on printed circuit boards. Ideal for use in audio gear, test equipment, and control systems.

Specifications:

• Product Type: Trimmer Potentiometer

• Resistance: 100K Ohm (100,000 Ohms)

• Power Rating: 0.5 Watt

• Adjustment Type: Top Adjust

• Mounting Type: Through-hole, PC Pin

• Tolerance: ±10%

• Rotation: Single or multi-turn (model dependent)

• Operating Temperature Range: -55°C to +125°C

• Applications: Calibration, signal tuning, voltage regulation, trimming

Features:

• Accurate 100K Ohm resistance control for precision tuning

• 0.5W power rating suitable for low-power circuit designs

• Top adjust design for easy in-circuit calibration

• Through-hole PC pin mounting for secure board placement

• Durable construction for long-lasting reliability

• Ideal for instrumentation, audio, RF, and power management circuits
